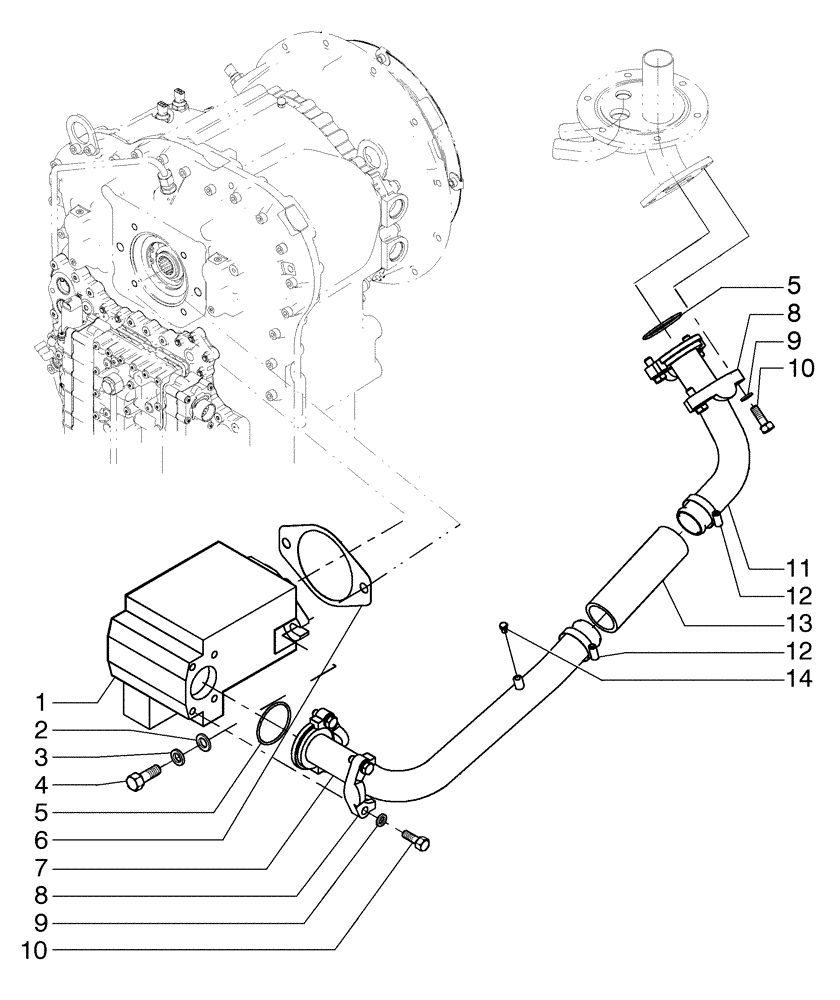

Запчасти Case 885B (08-03[03A]) - REAR HYDRAULIC SYSTEM - (TORQUE CONVERTER) (08) - HYDRAULICS

1

75323556

HYDRAULIC PUMP,90 CC

1шт.

1

75323556R

REMAN-HYD PUMP

Reman for New PN 75323556

1шт.

1

75323556C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

3

87016618

LOCK WASHER,M16

2шт.

4

11118731

BOLT,Hex, M16 x 45, 10.9

2шт.

5

9843376

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

6

73151829

GASKET,0.76mm Thk

1шт.

7

84421614

TUBE

1шт.

8

70921599

CLAMP

4шт.

9

892-11012

LOCK WASHER,M12

8шт.

10

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

8шт.

11

84421617

TUBE

1шт.

12

79083847

HOSE CLAMP,M50-70

2шт.

13

75236034

HOSE,50.80 mm ID x 195.00 mm, SAE 100R4

1шт.

14

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.
