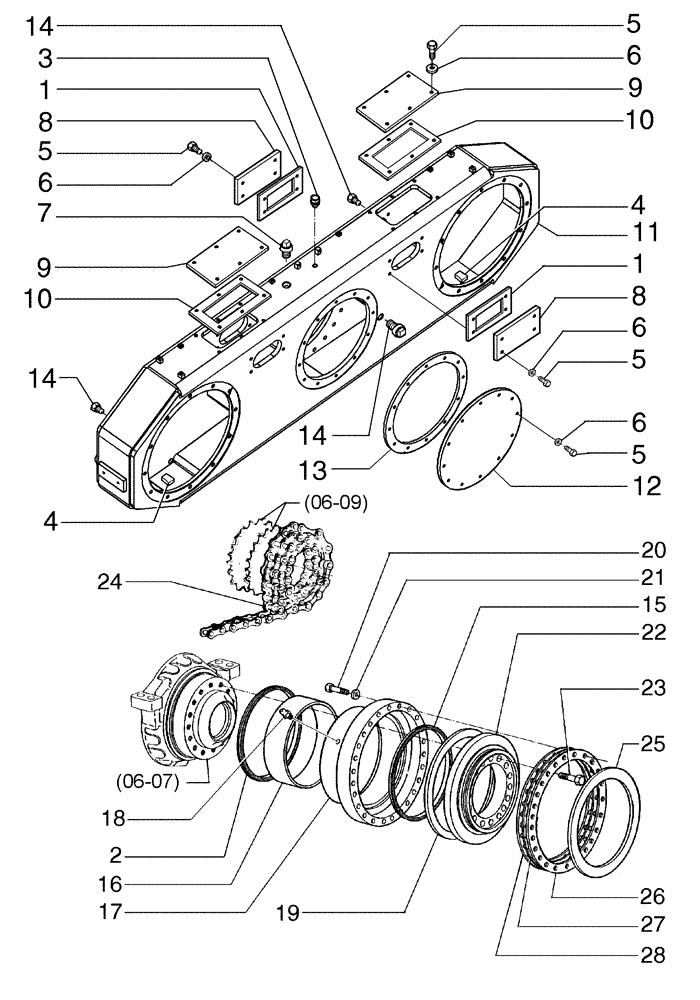

Запчасти Case 885B (06-12[03]) - REAR AXLE - TANDEM (06) - POWER TRAIN

1

84405528

GASKET,1.5mm Thk

4шт.

2

87625377

RUBBER SEAL,380mm ID x 393mm OD x 7.5mm Thk

2шт.

3

84385694

BREATHER

1шт.

4

87476417

BLOCK

2шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

40шт.

6

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

40шт.

7

70912768

PLUG

1шт.

8

75266712

COVER PLATE

4шт.

9

87677039

COVER

2шт.

10

87625332

GASKET

2шт.

11

87665991

FINAL DRIVE

FINAL REDUCTION GEARBOX

1шт.

12

75266741

COVER

1шт.

13

73161784

GASKET,1.5mm Thk

1шт.

14

70920416

PLUG

3шт.

15

84356099

OIL SEAL,434.5mm ID x 446.5mm OD x 9mm Thk

2шт.

16

87625378

BUSHING,420mm ID x 434mm OD x 90mm L

2шт.

17

87679235

HUB

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

19

87625386

THRUST WASHER

2шт.

20

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

21

10517273

WASHER

48шт.

22

87625394

FLANGE

2шт.

23

15988531

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9, Full Thd

48шт.

24

87667593

CHAIN,54 Links x 50.8mm = 2743.2mm

4шт.

25

87625385

SHIM,434mm ID x 511mm OD x 3mm Thk

2шт.

26

87625384

SHIM,515mm ID x 573mm OD x 0.15mm Thk

14шт.

27

87662905

SHIM,515mm ID x 573mm OD x 0.18mm Thk

4шт.

28

87625383

SHIM,515mm ID x 573mm OD x 0.45mm Thk

4шт.
