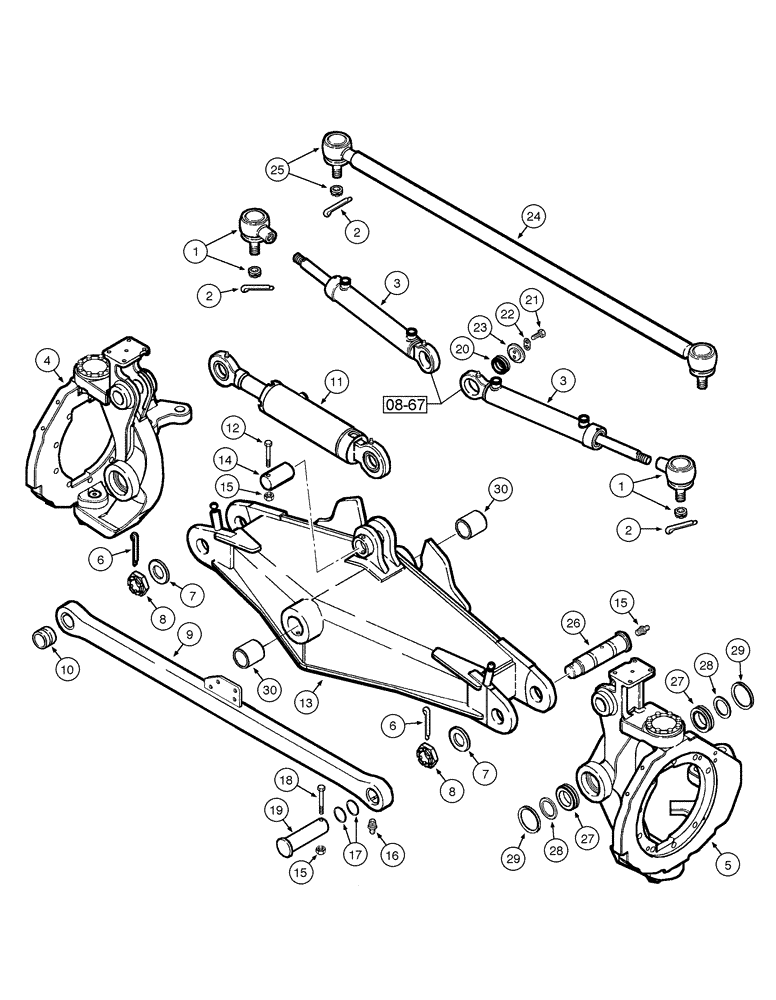

Запчасти Case 885B (06-04[01]) - FRONT AXLE - ASSEMBLY (06) - POWER TRAIN

1

1925104

BALL JOINT

2шт.

2

70904002

COTTER PIN,1/8" x 2"

4шт.

3

87632370

CYLINDER

steering

2шт.

3

87632372R

REMAN-HYD CYLINDER

845B, 865B, 885B, All MOTOR GRADER TIER 3 (NEW CAB), no paint, primer only (12/10-), Reman for New PN 87632370

2шт.

3

87632372C

CORE-HYD CYLINDER

Return Number

2шт.

4

REF

INSTRUCTION

KNUCKLE Assy

1шт.

5

REF

INSTRUCTION

KNUCKLE Assy

1шт.

6

300600

COTTER PIN,M8 x 80

2шт.

7

87668013

WASHER

2шт.

8

87668014

NUT

2шт.

9

87665299

BAR

1шт.

10

87647431

BUSHING,45mm ID x 55mm OD x 40mm L

2шт.

11

87632360

CYLINDER,Double Acting, 45mm Rod, 203mm Stroke

tilt

1шт.

11

87632360R

REMAN-HYD CYLINDER

845B, 865B, 885B, All MOTOR GRADER TIER 3 (NEW CAB), tilt (12/10-)

1шт.

11

87632360C

CORE-HYD CYLINDER

Return Number

1шт.

12

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

13

87626468

FRONT AXLE

front

1шт.

14

87647426

PIN,45mm OD x 97mm L

1шт.

15

100016

NUT,M10 x 1.5, Cl 8

3шт.

16

13407211

LUBE NIPPLE,M10 x 1

4шт.

17

2978906

SEALING RING

4шт.

18

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

19

87647423

PIN,45mm OD x 171mm L

2шт.

20

87663316

SPHERICAL BEARING,35mm ID x 55mm OD x 25mm W

2шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

87647430

COVER PLATE

2шт.

23

87647429

DISC

2шт.

24

84361155

TIE-ROD,M30 x 1.5mm ID x 1560mm L

Assy, Includes Items 25 and 31

1шт.

25

84385730

BALL JOINT

Threaded RH

1шт.

25

84385731

BALL JOINT

Threaded LH

1шт.

26

84167878

BRONZE BUSHING,50.88mm ID x 65.08mm OD x 70mm L

2шт.

27

87663318

SPH ROLLER BEARING,50mm ID x 80mm OD x 20mm W

4шт.

28

87663319

LOCK WASHER

4шт.

29

87648785

RUBBER RING

4шт.

30

84167878

BRONZE BUSHING,50.88mm ID x 65.08mm OD x 70mm L

2шт.

31

84385732

CLAMP

2шт.
