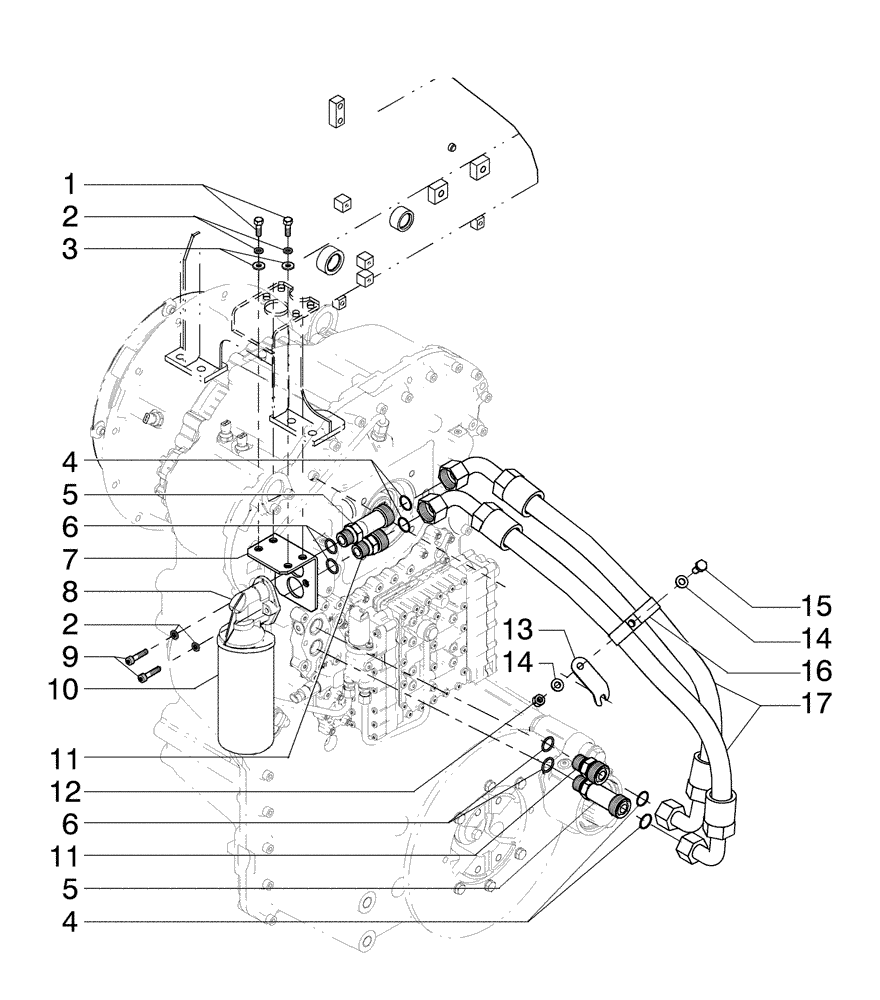

Запчасти Case 885B (06-01[21A]) - TRANSMISSION FILTER LINES - (TORQUE CONVERTER) (06) - POWER TRAIN

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

2

10516671

LOCK WASHER

6шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

12шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

5

84427415

FITTING

2шт.

6

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

7

87739038

SUPPORT

1шт.

8

76081102

FILTER HEAD

1шт.

9

14306631

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

10

87519452

HYDRAULIC OIL FILTER

1шт.

11

84427409

FITTING

1шт.

12

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

13

84167323

SUPPORT

1шт.

14

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

15

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

16

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

17

84427665

HOSE ASSY.

2шт.
