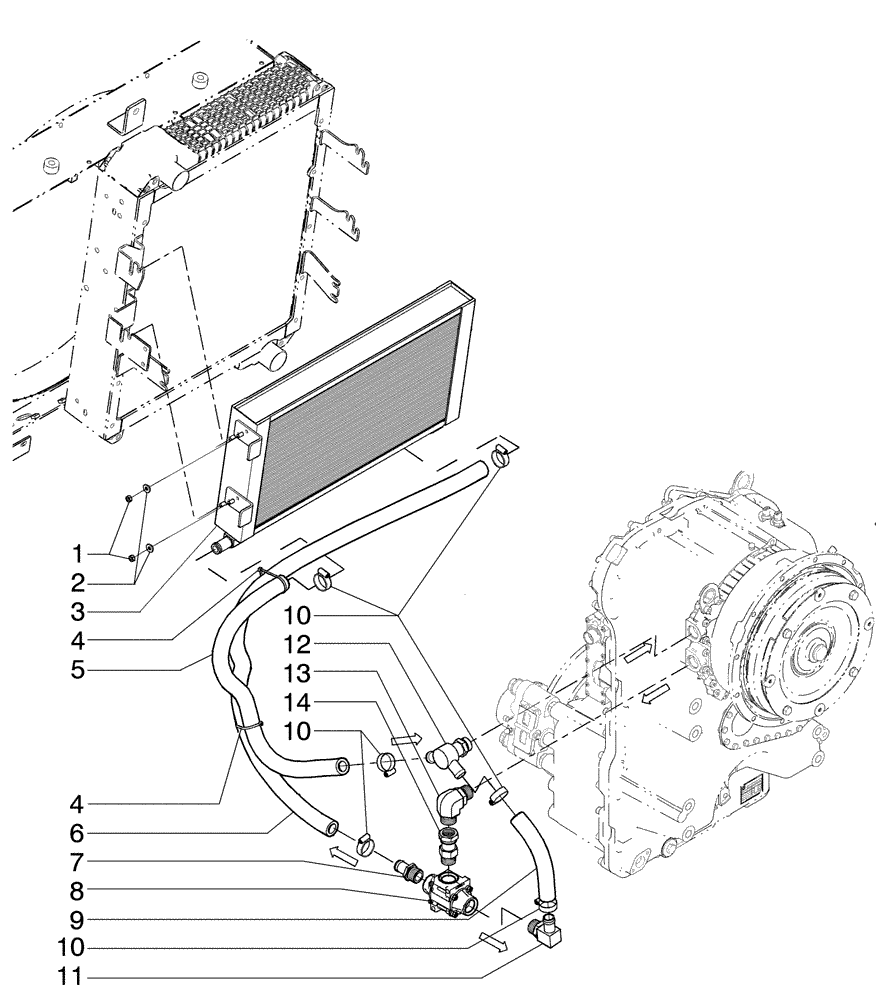

Запчасти Case 885B (06-01[19A]) - TRANSMISSION OIL COOLER - (TORQUE CONVERTER) (06) - POWER TRAIN

1

16102321

THIN NUT,Thin, M8 x 1.25, Cl 05

4шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

3

8501295

OIL COOLER

1шт.

4

75201642

CLAMP

2шт.

5

84545874

LARGE HOSE

HOSE,LARGE

1шт.

6

84545869

LARGE HOSE

HOSE,LARGE

1шт.

7

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

8

84138750

VALVE

1шт.

9

84534964

LARGE HOSE

HOSE,LARGE

1шт.

10

79083845

HOSE CLAMP,32mm - 50mm, Worm Gear

6шт.

11

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

12

84544850

FITTING

Upper

1шт.

13

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

14

87672177

HYD CONNECTOR

1шт.
