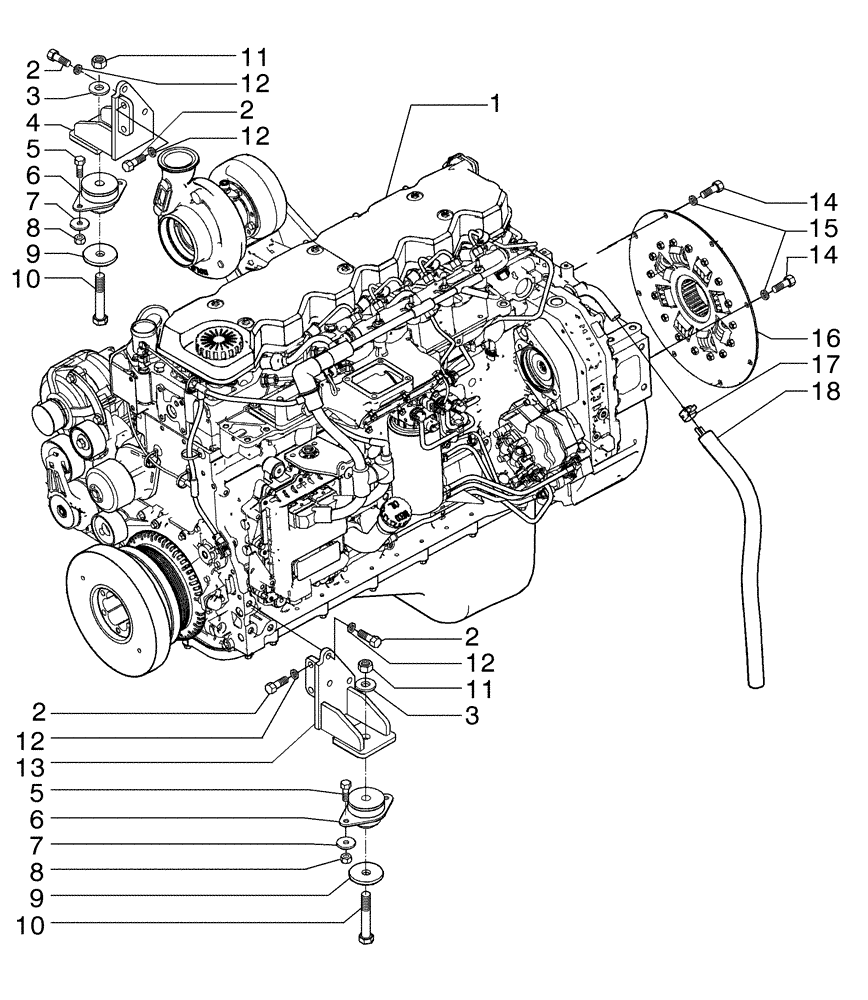

Запчасти Case 885B (02-03[01]) - ENGINE AND SUPPORTS (02) - ENGINE

1

84159802

ENGINE

1шт.

For Direct Drive

1шт.

84159802ER

REMAN-REPLACEMENT EN

1шт.

84159802EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84275614

ENGINE

1шт.

For Tork Converter

1шт.

1

47795689

ENGINE

, Start Serial: HBZN0140KGAF05710

1шт.

71104543

ENGINE OVERHAUL KIT

Set of Lower Gaskets

1шт.

71104542

ENGINE OVERHAUL KIT

Set of Upper Gaskets

1шт.

71104536

ENGINE OVERHAUL KIT

Engine Overhauling Kit

1шт.

2

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

10шт.

3

70927275

WASHER

2шт.

4

84495181

SUPPORT

RH

1шт.

5

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

73163866

ENGINE MOUNT

2шт.

7

12644321

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

8

11701721

NUT,M10, Cl 10

4шт.

9

70926195

WASHER

2шт.

10

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

11

12164121

NUT,M16 x 1.5, Cl 10

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

13

84495184

SUPPORT

LH

1шт.

14

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

For Direct Drive

1шт.

15

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

8шт.

For Direct Drive

1шт.

16

75249578

DAMPER,352.25mm OD

1шт.

For Direct Drive

1шт.

16

75249578R

REMAN-DAMPER

885B MOTOR GRADER TIER 3 (NEW CAB) (12/10-)

1шт.

16

75249578C

CORE-DAMPER

Return Number

1шт.

17

70925756

CLAMP

1шт.

18

87342638

HOSE,19.05mm ID x 800mm L, SAE 30R2

1шт.
