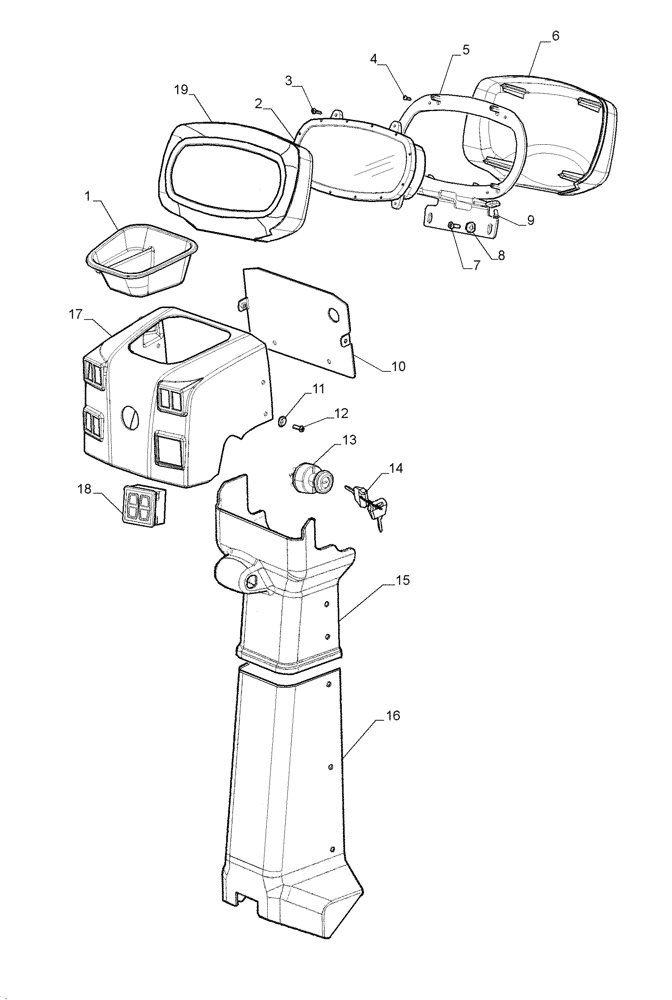

Запчасти Case 885B (04-26[02]) - INSTRUMENT PANEL, FRONT CONSOLES (04) - ELECTRICAL SYSTEMS

1

47569553

TRAY

1шт.

2

47371748

INSTRUMENT PANEL

1шт.

3

13272217

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

4шт.

4

15687304

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 16mm

4шт.

5

47555374

BRACKET

1шт.

6

47555398

HOUSING

1шт.

7

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

2шт.

8

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

2шт.

9

843-2612

SCREW,Flat , M6 x 16.3mm OAL, Cl 4.8

2шт.

10

47555417

COVER

1шт.

11

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

4шт.

12

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

13

75325352

SWITCH

1шт.

14

1964831C2

IGNITION KEY

1шт.

15

84547057

HEADLINER

1шт.

16

84547056

HEADLINER

1шт.

17

47555348

COVER

1шт.

18

87372804

BOX

8шт.

19

47555386

HOUSING

1шт.
