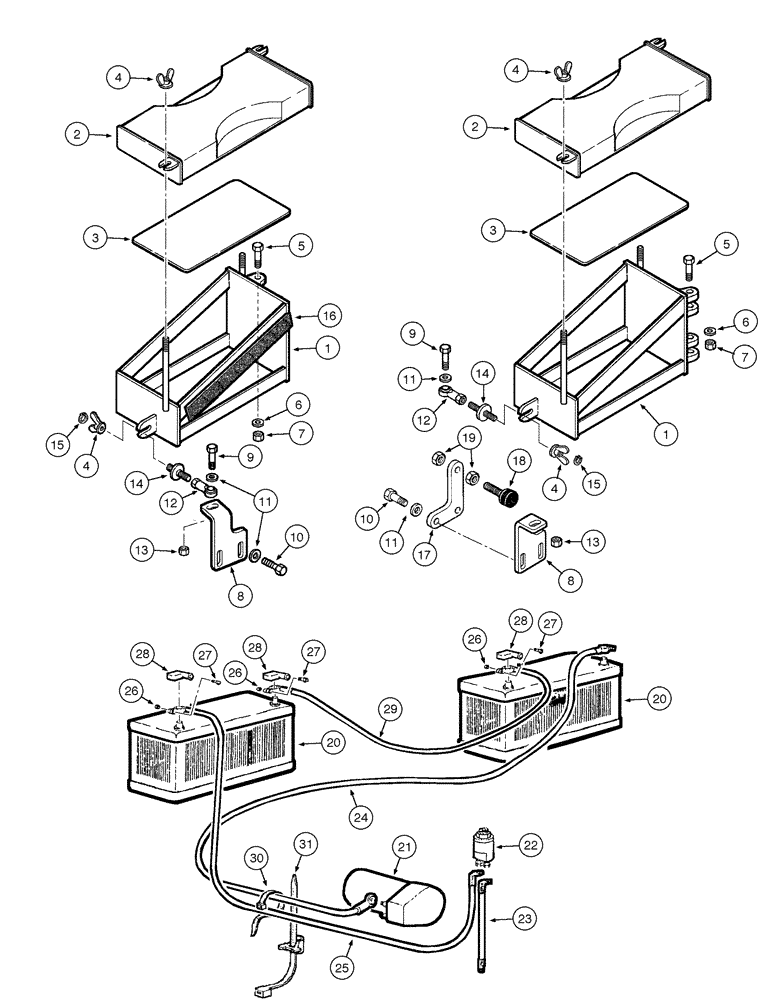

Запчасти Case 885 AWD (04-22[01]) - ELECTRICAL SYSTEM - BATTERY (04) - ELECTRICAL SYSTEMS

1

75324207

SUPPORT

LH

1шт.

1

75324318

SUPPORT

RH

1шт.

2

75326442

COVER

2шт.

3

75249924

PLATE

2шт.

4

73125821

NUT

6шт.

5

15541231

BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

7

16105011

NUT,Hex, M12 x 1.25, Cl 8

4шт.

8

75324253

SUPPORT

LH

1шт.

8

75324372

SUPPORT

RH

1шт.

9

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

10

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

11

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

12

70617932

TRACK ROD END

2шт.

13

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

14

75324262

BOLT

2шт.

15

86507012

SNAP RING,M6, Ext

2шт.

16

75325871

RUBBER SEAL,38mm W x 338mm L x 5mm Thk

2шт.

17

87701915

BRACKET

1шт.

18

79037282

PAD

1шт.

19

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

20

BMF31TW

WET BATTERY

For U.S. market

2шт.

20

CBMF31TW

WET BATTERY

For CANADA market

2шт.

21

REF

INSTRUCTION

STARTER

1шт.

Page 04-02

1шт.

22

REF

INSTRUCTION

SWITCH master

1шт.

Page 04-14

1шт.

23

75239845

ELECTRIC CABLE,700mm L

ground

1шт.

24

76022498

ELECTRIC CABLE

positive

1шт.

25

75322262

ELECTRIC CABLE

negative, Includes items 26, 27, 28

1шт.

26

16100818

NUT

3шт.

27

11947708

BOLT

3шт.

28

8321668

BOOT

3шт.

29

75324401

ELECTRIC CABLE

connection

1шт.

30

75201641

CLAMP

4шт.

31

75284071

CLAMP

6шт.
