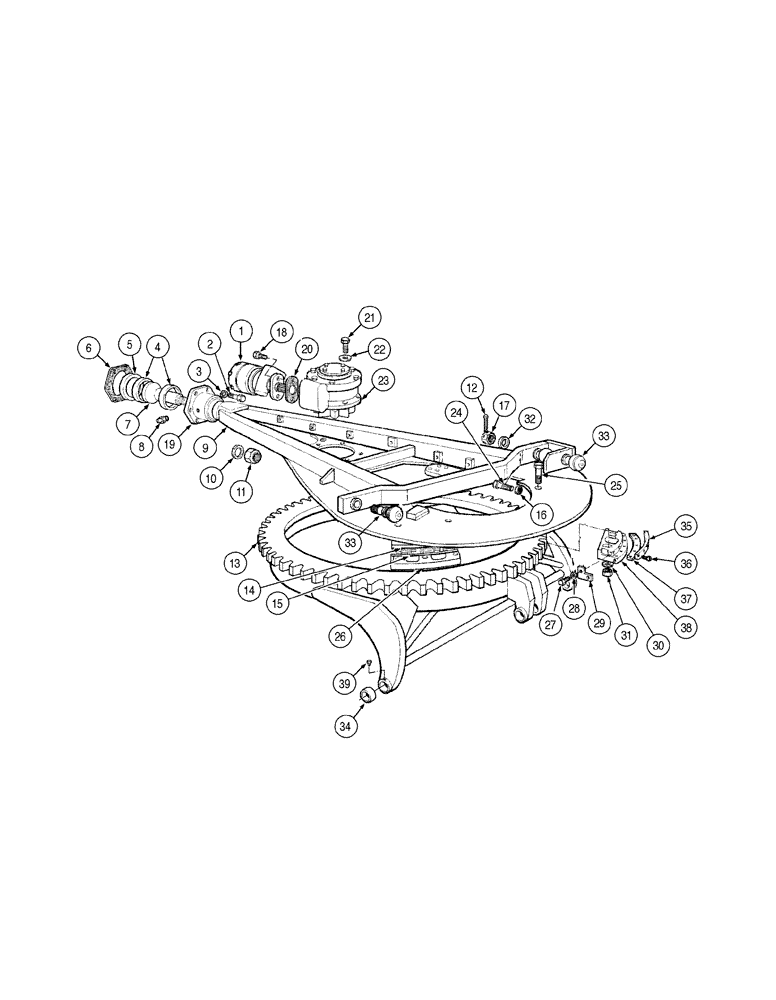

Запчасти Case 885 AWD (09-018[01]) - TURN-CIRCLE - ASSEMBLY (09) - CHASSIS

1

87389985

HYDRAULIC MOTOR

MOTOR hydraulic

1шт.

Page 08-044

1шт.

2

15835231

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

8шт.

3

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

8шт.

4

73130017

BUSHING,120.1mm ID x 152.32mm OD x 33.53mm L

2шт.

5

73125534

SPACER,127mm ID x 151.64mm OD x 36.83mm L

1шт.

6

70673457

SHIM

20шт.

7

73125531

DRAWBAR

1шт.

8

70912497

HYD CONNECTOR

1шт.

9

75266633

DRAWBAR

1шт.

10

70927662

WASHER,1.81" ID x 2.75" OD x 0.38" Thk

1шт.

11

70921374

NUT

1шт.

12

70900808

COTTER PIN,1/8" x 1 1/2"

3шт.

13

75267121

CIRCLE-CUTTER BLOCK

1шт.

14

73125482

PLATE

4шт.

15

73125483

SHIM,111.3mm OD x 0.78mm Thk

40шт.

16

70901421

NUT

8шт.

17

75326480

NUT

3шт.

18

70922065

SCREW

2шт.

19

75267108

HOUSING

1шт.

20

70651322

GASKET,0.76mm Thk

1шт.

21

15984131

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

6шт.

22

70927382

WASHER

6шт.

23

75267470

BOX

REDUCER turn-circle

1шт.

Page 08-066

1шт.

23

75267470R

REMAN-REDUCTION UNIT

Turn-Circle

1шт.

23

75267470C

CORE-REDUCTION UNIT

Return Number

1шт.

24

73125522

BOLT,Hex, 7/8" - 9 x 3-1/2"

8шт.

25

70929092

SCREW

8шт.

26

87618963

GUIDE

Includes items 27,28,29,38

4шт.

27

16323531

SCREW,M10 x 1.25 x 30mm

16шт.

28

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

16шт.

29

87616831

PLATE

LH

4шт.

29

87616832

PLATE

RH

4шт.

30

70929704

WASHER

8шт.

31

70053994

NUT

8шт.

32

75326490

WASHER,26.9mm ID x 63.5mm OD x 4.2mm Thk

3шт.

33

75326511

BALL STUD,1" - 14

3шт.

34

75327347

BUSHING,51mm ID x 63mm OD x 61mm L

2шт.

35

84165763

PLATE

4шт.

36

73126330

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

40шт.

37

84165760

PLATE

4шт.

38

75270574

GUIDE

Includes items 35,36,37

4шт.

39

70919134

PLUG

2шт.
