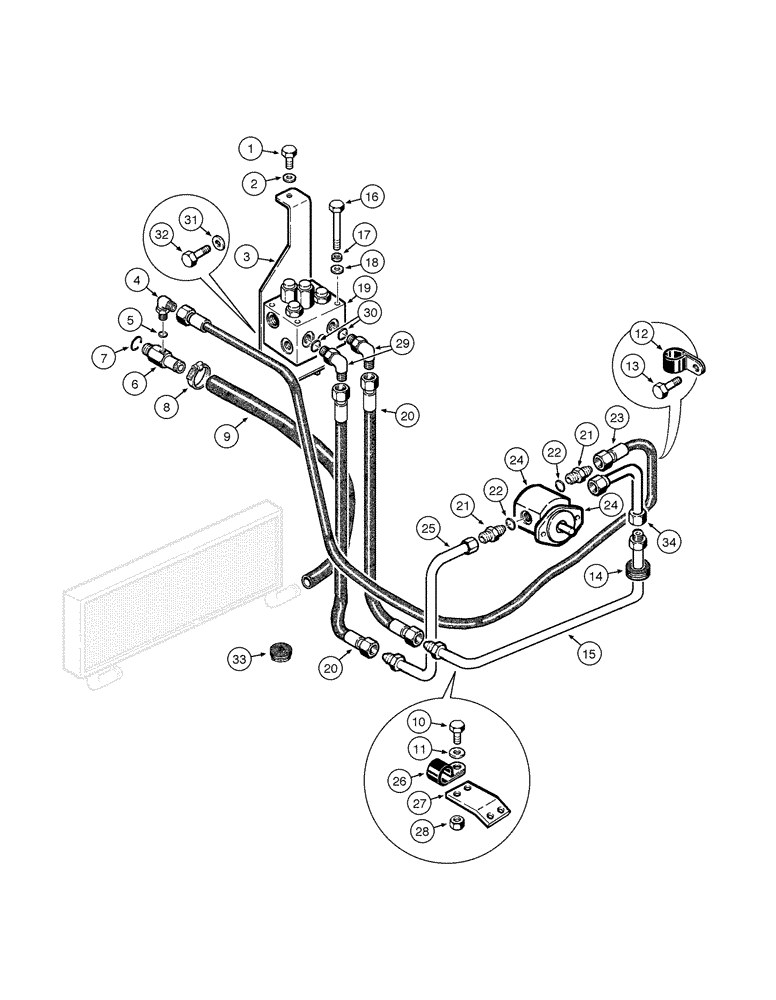

Запчасти Case 885 AWD (08-088[01]) - ENGINE COOLING SYSTEM - REVERSE FAN HYDRAULIC MOTOR (08) - HYDRAULICS

1

15219531

BOLT

1шт.

2

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

3

75327641

SUPPORT

1шт.

4

70919135

HYD CONNECTOR

Includes item 5

1шт.

5

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87756948

HYD CONNECTOR

Includes item 7

1шт.

7

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

8

87372829

CLAMP,1.40" - 1.56"

2шт.

9

87755864

FLEXIBLE HOSE

1шт.

10

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

70927155

CLIP

1шт.

13

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

14

75327777

GROMMET

3шт.

15

87644617

RIGID TUBE,14 mm ID x 19 mm OD

1шт.

16

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

4шт.

17

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

18

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

19

REF

INSTRUCTION

VALVE fan reverse

1шт.

Page 08-92

1шт.

20

87673400

FLEXIBLE HOSE

2шт.

21

86900673

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Includes item 22

2шт.

22

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

23

75326973

HOSE ASSY.

1шт.

24

REF

INSTRUCTION

MOTOR hydraulic

1шт.

Page 08-98

1шт.

25

87644618

RIGID TUBE,14 mm ID x 19 mm OD x 417, 180 mm L

1шт.

26

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

27

87678515

SUPPORT

1шт.

28

16104121

NUT,M8 x 1.25, Cl 10

2шт.

29

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Includes item 30

2шт.

30

14457981

O-RING,1.049" ID x 0.103" Width

2шт.

31

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

2шт.

33

14507887

PLUG,25mm ID, 39mm OD

1шт.

34

87678230

RIGID TUBE,230, 159 mm L

1шт.
