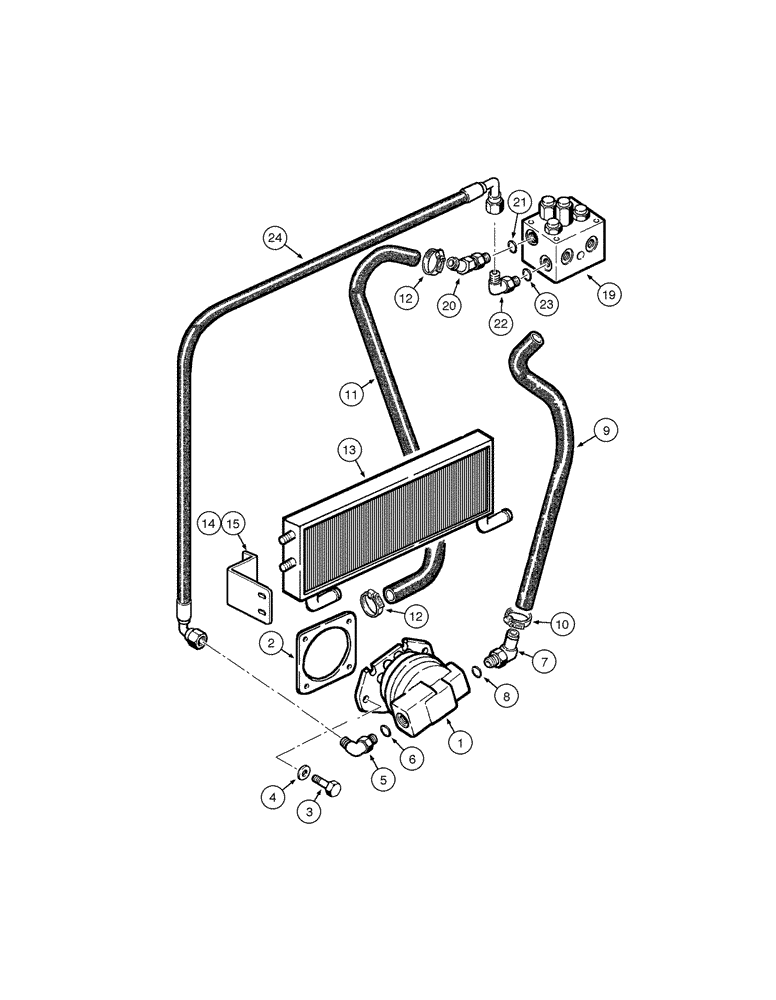

Запчасти Case 885 AWD (08-086[01]) - ENGINE COOLING SYSTEM - REVERSE FAN HYDRAULIC PUMP (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP hydraulic Assy

1шт.

Page 08-90

1шт.

2

70188771

GASKET,0.79mm Thk

1шт.

3

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

2шт.

4

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

87362914

HYD CONNECTOR

Includes item 6

1шт.

6

70926843

O-RING,-125, Cl 8, 1.299" ID x .103" Thk

1шт.

7

75323722

HYD CONNECTOR

Includes item 8

1шт.

8

70925935

O-RING,-223, Cl 8, 1.609" ID x .139" Thk

1шт.

9

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

10

214-2122

CLAMP,39.62mm - 45.97mm

2шт.

11

87755864

FLEXIBLE HOSE

1шт.

12

87372829

CLAMP,1.40" - 1.56"

2шт.

13

87382507

OIL COOLER

oil

1шт.

14

87488860

FIXING PLATE

LH

1шт.

15

87489035

FIXING PLATE

RH

1шт.

19

REF

INSTRUCTION

VALVE fan reverse

1шт.

Page 08-92

1шт.

20

75326990

FITTING

Includes item 21

1шт.

21

14438185

O-RING,24mm ID x 3mm

1шт.

22

79067025

ELBOW

Includes item 23

1шт.

23

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

24

75326972

HOSE ASSY.

1шт.
