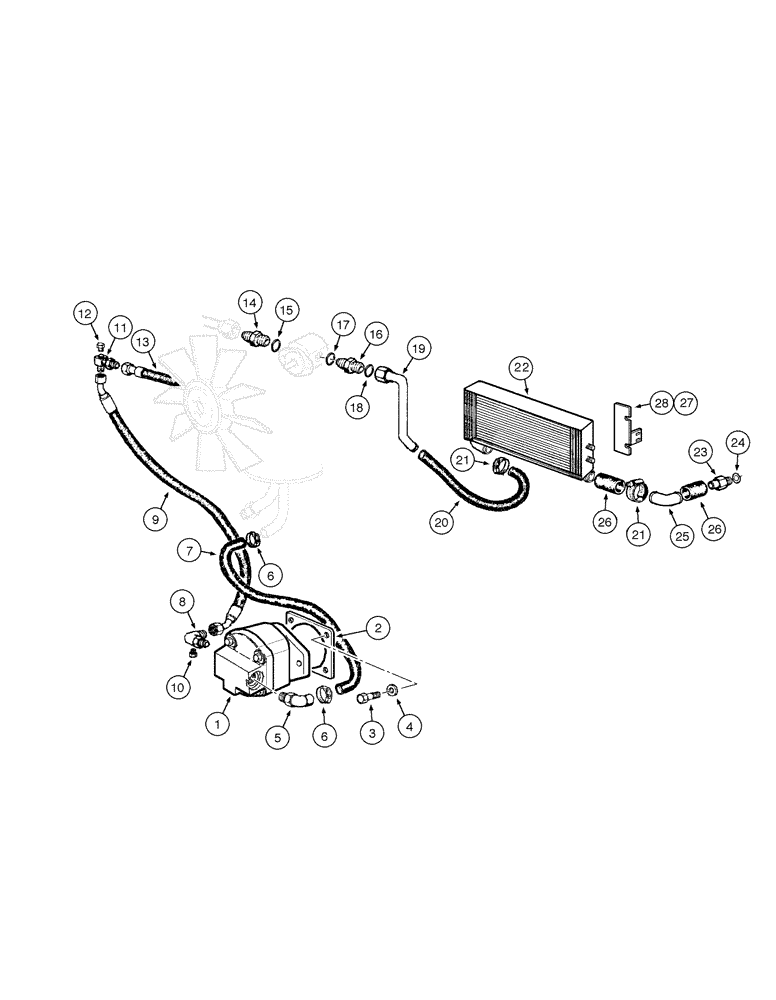

Запчасти Case 885 AWD (08-084[01]) - ENGINE COOLING SYSTEM - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP hydraulic Assy

1шт.

Page 08-90

1шт.

2

70188771

GASKET,0.79mm Thk

1шт.

3

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

2шт.

4

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

75323722

HYD CONNECTOR

1шт.

6

214-2122

CLAMP,39.62mm - 45.97mm

8шт.

7

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

8

87362914

HYD CONNECTOR

1шт.

9

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

1шт.

10

70901652

PLUG

1шт.

11

75325032

HYD CONNECTOR

1шт.

12

70919134

PLUG

1шт.

13

87394148

HOSE,19mm ID x 440mm L, SAE 100R2

1шт.

14

70921228

HYD CONNECTOR

Includes item 15

1шт.

15

70921214

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

seal

1шт.

16

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

Includes item 17

1шт.

17

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

19

87644639

RIGID TUBE,22.9 mm ID x 25.4 mm OD

1шт.

20

87489522

HOSE,25.4mm ID x 800mm L, SAE 100R3

1шт.

21

87372829

CLAMP,1.40" - 1.56"

6шт.

22

87382507

OIL COOLER

1шт.

23

87363148

HYD CONNECTOR

Includes item 24

1шт.

24

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

25

87489520

RETURN PIPE

1шт.

26

E66256

SLEEVE

2шт.

27

87489035

FIXING PLATE

RH

1шт.

28

87488860

FIXING PLATE

LH

1шт.
