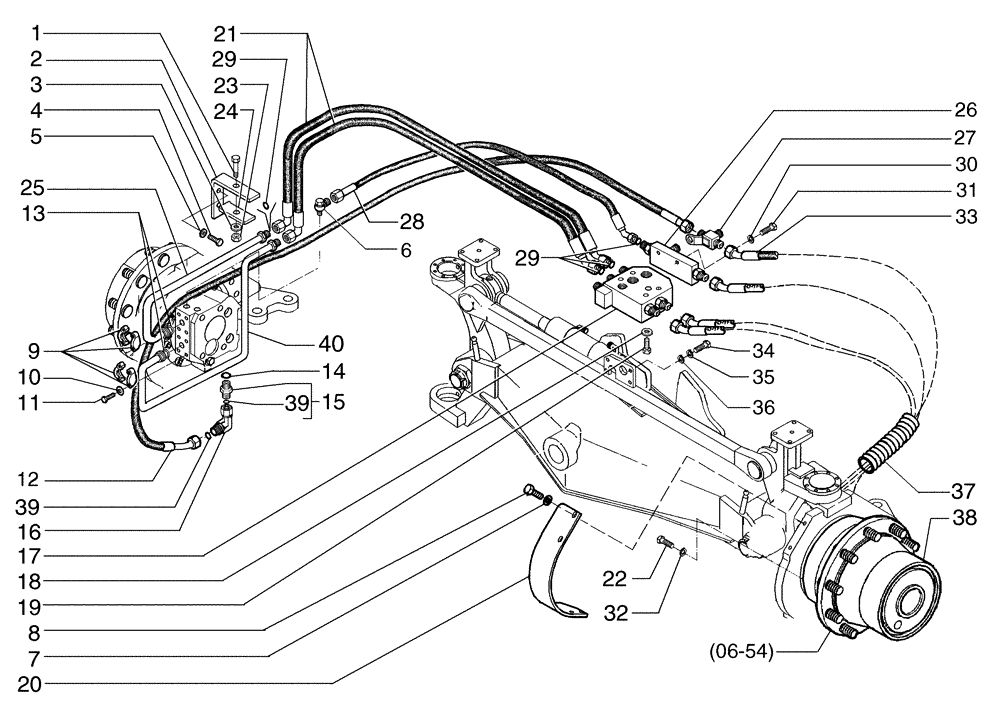

Запчасти Case 885 AWD (08-026[01]) - FRONT WHEEL DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

2

87714556

SUPPORT

2шт.

3

16516671

2шт.

4

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

5

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

4шт.

6

87711765

HYD CONNECTOR

2шт.

7

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

8шт.

8

300512

BOLT,Hex, M12 x 55mm, Cl 8.8

8шт.

9

75257751

FLANGE

8шт.

10

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

16шт.

11

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

16шт.

12

84124637

HOSE,7.94mm ID x 2433mm L, SAE 100R5

RH

1шт.

13

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

14

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

15

87714256

FITTING

2шт.

16

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

17

84172227

BLOCK

1шт.

18

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

8шт.

19

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

8шт.

20

87676183

PROTECTION

LH

1шт.

20

87676190

PROTECTION

RH

1шт.

21

87665350

FLEXIBLE HOSE

4шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

18шт.

23

16100821

NUT,M8, Cl 10

2шт.

24

R15257

CLAMP

2шт.

25

84124642

TUBE

LH

1шт.

25

84124701

TUBE

RH

1шт.

26

84175031

BLOCK

1шт.

27

84179026

FITTING

1шт.

28

84176830

HOSE,15.88mm ID x 1650mm L, SAE 100R3

2шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

30

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

2шт.

31

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

2шт.

32

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

18шт.

33

87672074

FLEXIBLE HOSE

1шт.

34

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

35

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

36

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

37

87714255

HOSE PROTECTION

2шт.

38

87612639

GEAR REDUCTION UNIT

2шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

84124703

TUBE

RH

1шт.
