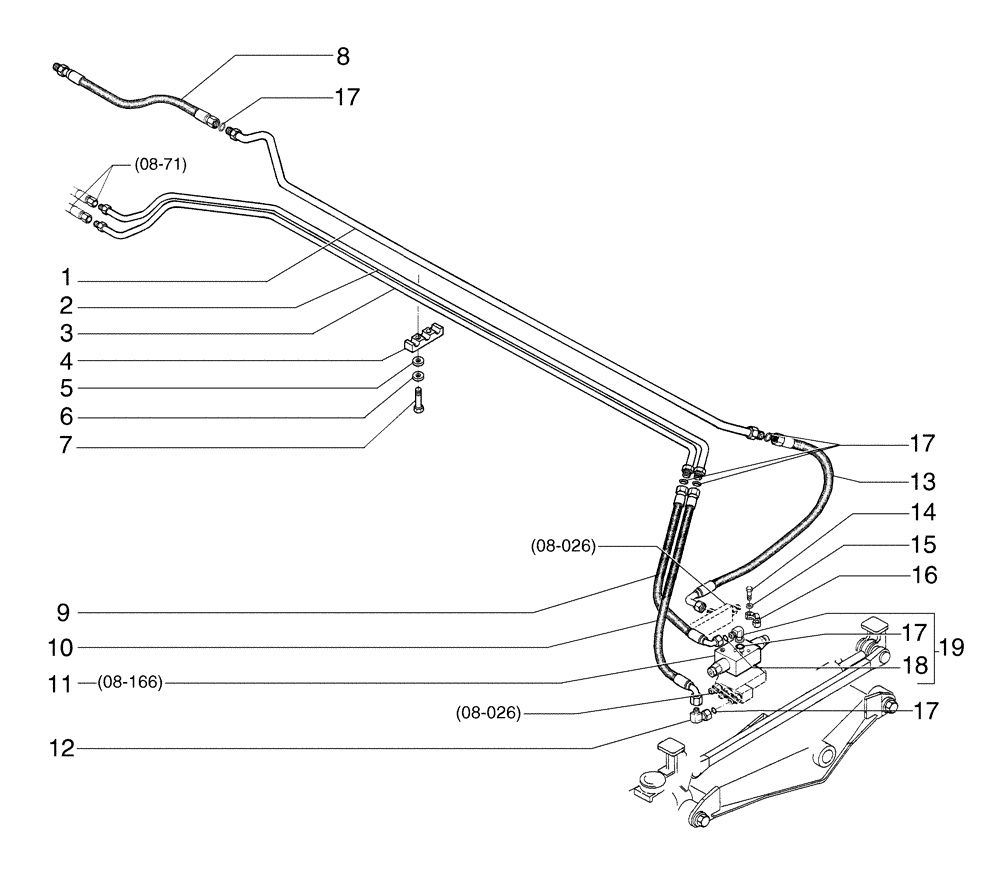

Запчасти Case 885 AWD (08-024[01]) - FRONT WHEEL DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

87623304

RIGID TUBE,25 mm ID x 28 mm OD

1шт.

2

87644272

RIGID TUBE,3111, 394 mm L

1шт.

3

87644271

RIGID TUBE,3079, 330 mm L

1шт.

4

87665325

CLAMP

4шт.

5

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

6

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

8шт.

7

11106831

SCREW,Hex, M10 x 40mm, Cl 10.9, Full Thd

8шт.

8

84124708

HOSE,25.4mm ID x 1150mm L, SAE 100R4

1шт.

9

84176827

HOSE,19.05mm ID x 1210mm L

1шт.

10

84176829

HOSE,19.05mm ID x 1310mm L

1шт.

11

4532278

FLOW DIVIDER

1шт.

12

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

13

87665351

FLEXIBLE HOSE

1шт.

14

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

15

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

4шт.

16

75257751

FLANGE

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

8шт.

18

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

6шт.

19

84174527

FITTING

Assy

2шт.
