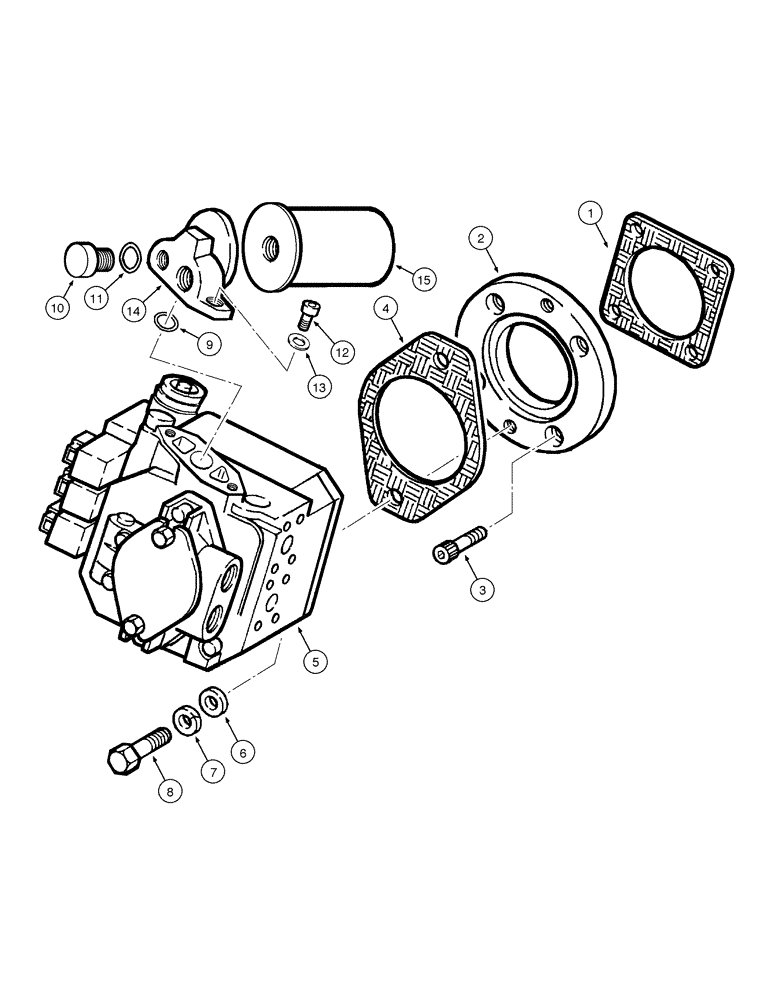

Запчасти Case 885 AWD (08-014[01]) - FRONT WHEEL DRIVE HYDRAULIC PUMP - ASSEMBLY (08) - HYDRAULICS

1

70188771

GASKET,0.79mm Thk

1шт.

2

87617082

FLANGE

1шт.

3

14422020

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

4

73151829

GASKET,0.76mm Thk

1шт.

5

87668596

HYDRAULIC PUMP,55 CC

Front Drive

1шт.

5

87668596R

REMAN-HYDROSTAT PUMP

885 AWD MOTOR GRADER TIER 3 (NA) (1/08-)

1шт.

5

87668596C

CORE-HYDROSTAT PUMP

Return Number

1шт.

6

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

2шт.

7

87016618

LOCK WASHER,M16

2шт.

8

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.

9

71103840

RUBBER RING

1шт.

10

71103841

PLUG

1шт.

11

71103842

RING

seal

1шт.

12

71103844

SCREW

2шт.

13

71103843

BELLEVILLE SPRING

2шт.

14

71103839

FILTER HEAD

1шт.

15

71103845

ELEMENT

1шт.
