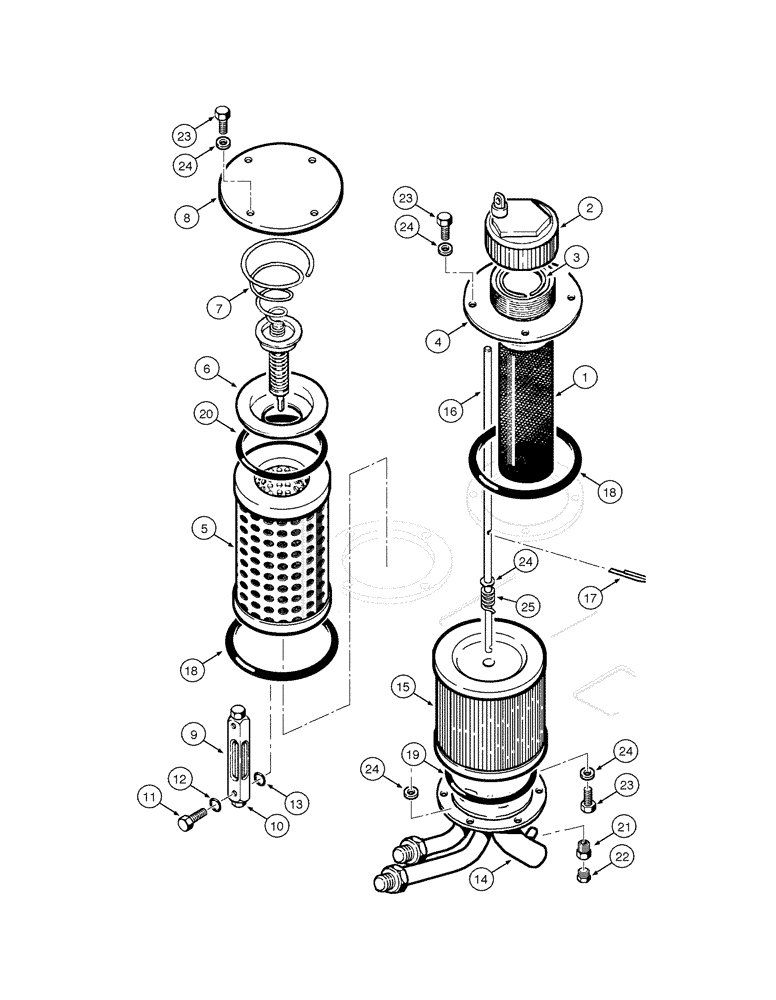

Запчасти Case 885 AWD (08-004[01]) - HYDRAULIC OIL RESERVOIR - FILTER (08) - HYDRAULICS

1

79107317

FILTER STRAINER

1шт.

2

79104494

CAP

1шт.

3

4971843

CIRCLIP

1шт.

4

75250791

PLATE

filling

1шт.

5

73125853

HYDRAULIC OIL FILTER

1шт.

6

73053604

RETAINER CUP

1шт.

7

73045861

HYDRAULIC VALVE

1шт.

8

75250792

COVER

1шт.

9

75261112

LEVEL INDICATOR

restriction

2шт.

10

75261113

BODY

1шт.

11

75261114

BANJO BOLT,1/2" - 20 x 49.6mm, Cl 10.9

2шт.

12

10266860

SEAL,13.2mm ID x 18mm OD x 1.5mm Thk

2шт.

13

75226115

RING

seal

2шт.

14

87699224

FLANGE

1шт.

15

87626518

FILTER

1шт.

16

75261197

TIE-ROD

1шт.

17

70900802

COTTER PIN,3/32" x 1"

2шт.

18

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

2шт.

19

70923594

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

1шт.

20

70923594

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

1шт.

21

70924146

O-RING,0.21" Thk x 3.225" ID, -339, Cl 5, 75 Duro

drain

2шт.

22

70920828

HYD CONNECTOR

1шт.

23

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

14шт.

24

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

16шт.

25

73066048

SPRING

1шт.
