(07-20[01]) - EMERGENCY BRAKE SYSTEM - ACCUMULATOR

Запчасти Case 885 AWD (07-20[01]) - EMERGENCY BRAKE SYSTEM - ACCUMULATOR (07) - BRAKES

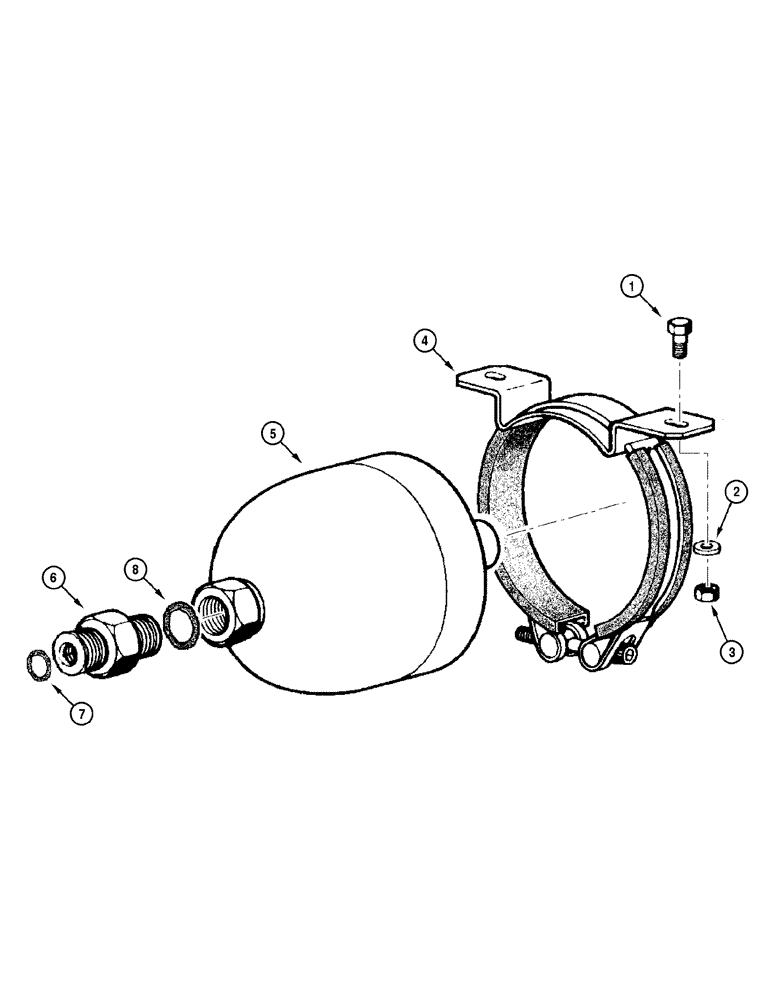

Схема запчастей Case 885 AWD - (07-20[01]) - EMERGENCY BRAKE SYSTEM - ACCUMULATOR (07) - BRAKES
2
3
6
7
8
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

2

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

3

43362

NUT,M8 x 1.25, Cl 10

4шт.

4

76028577

CLAMP,152mm - 159mm

2шт.

5

76028575

ACCUMULATOR

Assy

2шт.

6

75254105

HYD CONNECTOR

Includes items 7, 8

2шт.

7

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

Выбрано товаров: 8
