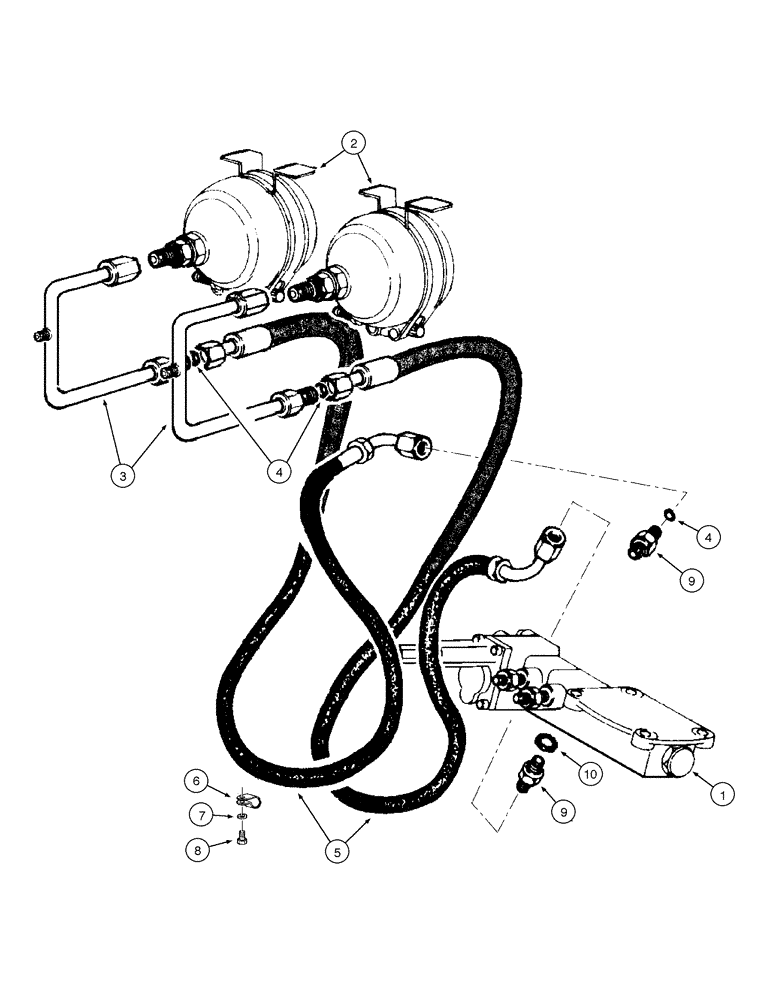

Запчасти Case 885 AWD (07-18[01]) - EMERGENCY BRAKE SYSTEM - ASSEMBLY (07) - BRAKES

1

REF

INSTRUCTION

BRAKE BOOSTER

1шт.

Page 07-10

1шт.

2

REF

INSTRUCTION

ACCUMULATOR Assy

1шт.

Page 07-20

1шт.

3

75253784

RIGID TUBE

2шт.

4

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

5

75252441

FLEXIBLE HOSE

2шт.

6

70925617

CLAMP

1шт.

7

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

8

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

9

75239803

LUBE NIPPLE

Includes item 10

2шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

2шт.
