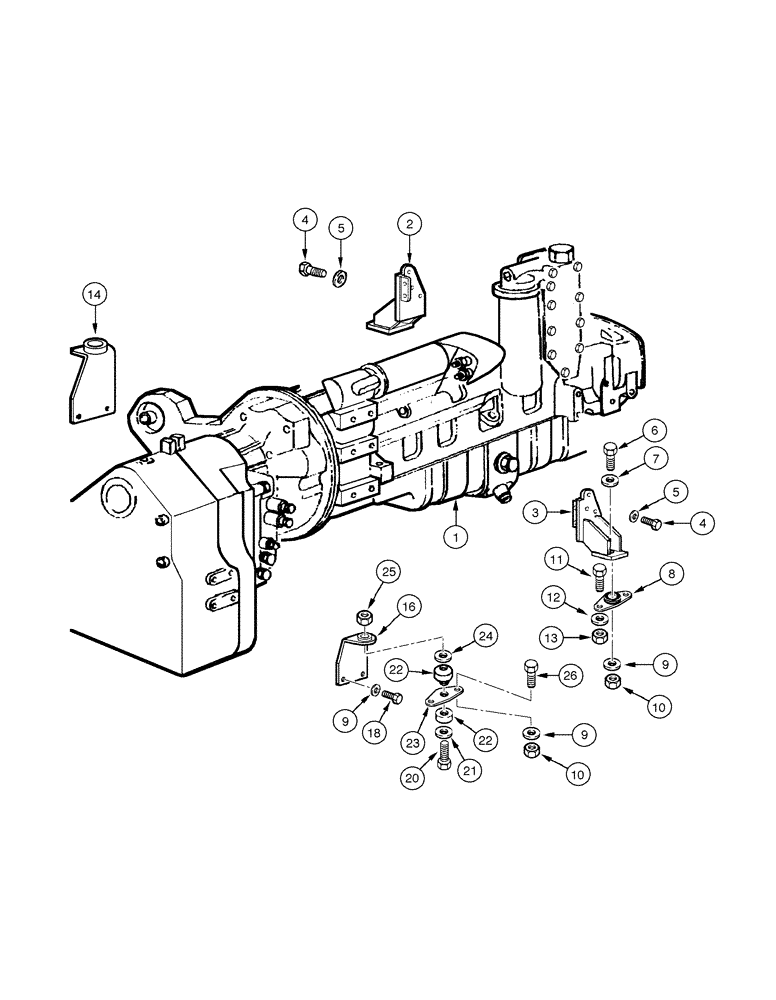

Запчасти Case 885 AWD (02-02[01]) - ENGINE - MOUNTING (02) - ENGINE

1

75264143

ENGINE,172kW, 6.7L, 6 Cylinders, W/ Turbocharger

Assy

1шт.

2

87621279

SUPPORT

engine LH

1шт.

3

87621278

SUPPORT

engine RH

1шт.

4

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

5

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

6шт.

6

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

7

70926195

WASHER

2шт.

8

73163866

ENGINE MOUNT

2шт.

9

70927275

WASHER

12шт.

10

12164121

NUT,M16 x 1.5, Cl 10

6шт.

11

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

13

11701721

NUT,M10, Cl 10

4шт.

14

75257767

BRACKET

LH

1шт.

16

75257766

BRACKET

RH

1шт.

18

11118537

SCREW

12шт.

20

15994031

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

2шт.

21

73163954

WASHER,23mm ID x 89mm OD x 12.7mm Thk

2шт.

22

73163867

MOUNTING PARTS

transmission

2шт.

23

73163953

PLATE

2шт.

24

73163534

WASHER,23.82mm ID x 88.9mm OD x 7.94mm Thk

2шт.

25

12164427

NUT,M22 x 1.5, Cl 10

2шт.

26

11390531

BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd

4шт.
