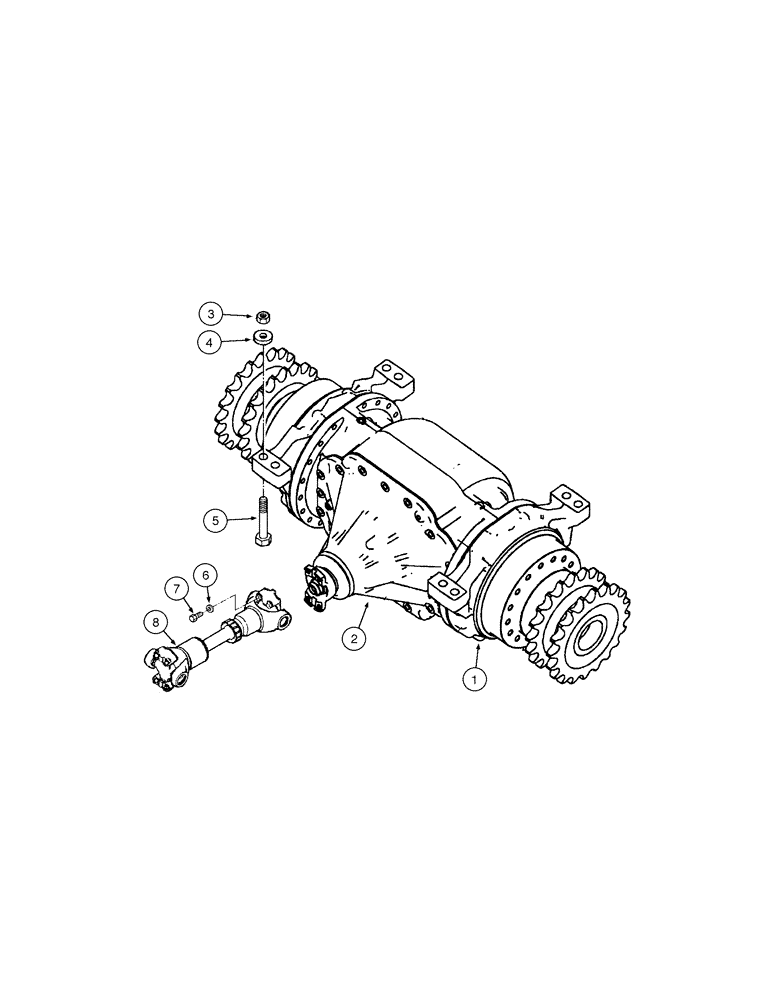

Запчасти Case 885 (06-56[01]) - REAR AXLE GRAZIANO - ASSEMBLY (06) - POWER TRAIN

1

87674788

CENTER AXLE

Includes item 2

1шт.

1

87674788R

REMAN-REAR AXLE

Includes item 2

1шт.

1

87674788C

CORE-REAR AXLE

Return Number

1шт.

2

REF

INSTRUCTION

1шт.

Page 06-62

1шт.

3

12575321

NUT,M24 x 2, Cl 10

8шт.

4

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

8шт.

5

15997731

BOLT,Hex, M24 x 2 x 110mm, Cl 10.9

8шт.

6

70912441

LOCK WASHER

8шт.

7

8067

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

8

87633266

UNIVERSAL JOINT

1шт.
