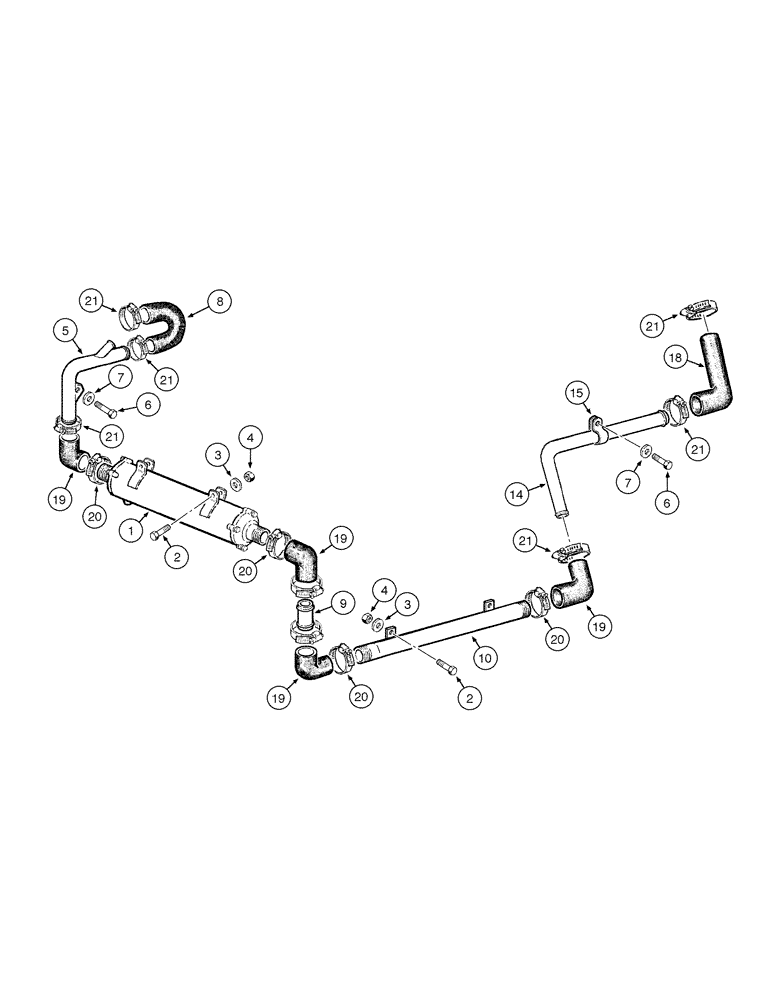

Запчасти Case 885 (06-44[01]) - TRANSMISSION - OIL COOLING SYSTEM (06) - POWER TRAIN

1

73164400

OIL COOLER

1шт.

2

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

4шт.

3

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

4

11701721

NUT,M10, Cl 10

4шт.

5

73164399

PIPE,46.6 mm ID, 50.8 mm OD, 375, 342 mm Length

1шт.

6

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

7

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

3шт.

8

75324694

HOSE,51.00 mm ID, 57.00 mm ID, SAE J20R4 D1

1шт.

9

75324204

TUBE,46.6 mm ID, 50.8 mm OD, 70 mm Length

1шт.

10

75257806

RIGID TUBE,47 mm ID, 50 mm OD, 795 mm Length

1шт.

14

87600871

TUBE

1шт.

15

70927313

CLAMP

2шт.

18

75327720

HOSE,57.00 mm ID x 192.00 mm, SAE J20R4 D2

Flexible

1шт.

19

75221770

ELBOW,51mm ID x 85mm L, SAE 20

4шт.

20

70921914

CLAMP

6шт.

21

70921913

HOSE CLIP

8шт.
