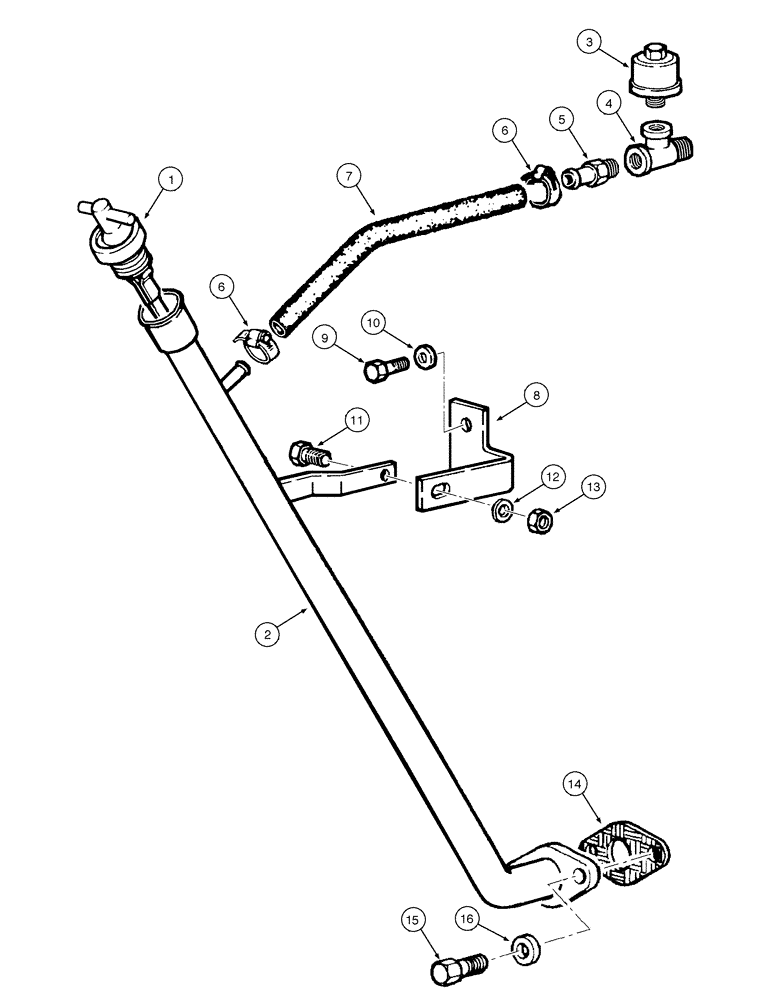

Запчасти Case 885 (06-12[01]) - TRANSMISSION - OIL DIPSTICK (06) - POWER TRAIN

1

87528242

DIPSTICK

oil level

1шт.

2

75325359

RIGID TUBE,25.4 mm OD, 598, 302.4 mm Length

1шт.

3

70050748

BREATHER

1шт.

4

75249415

HYD CONNECTOR

1шт.

5

70925957

HYD CONNECTOR

1шт.

6

79084753

HOSE CLIP,M10-18

2шт.

7

75256545

HOSE,9.50 mm ID x 300.00 mm

1шт.

8

87357623

BRACKET

1шт.

9

11118731

BOLT,Hex, M16 x 45, 10.9

1шт.

10

70677010

WASHER,16.67mm ID x 38.1mm OD x 7.94mm Thk

1шт.

11

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

1шт.

12

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

13

11702921

NUT,M12, Cl 10

1шт.

14

75248283

GASKET,0.8mm Thk

1шт.

15

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

16

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.
