Артикул
Название
Примечание
Количество

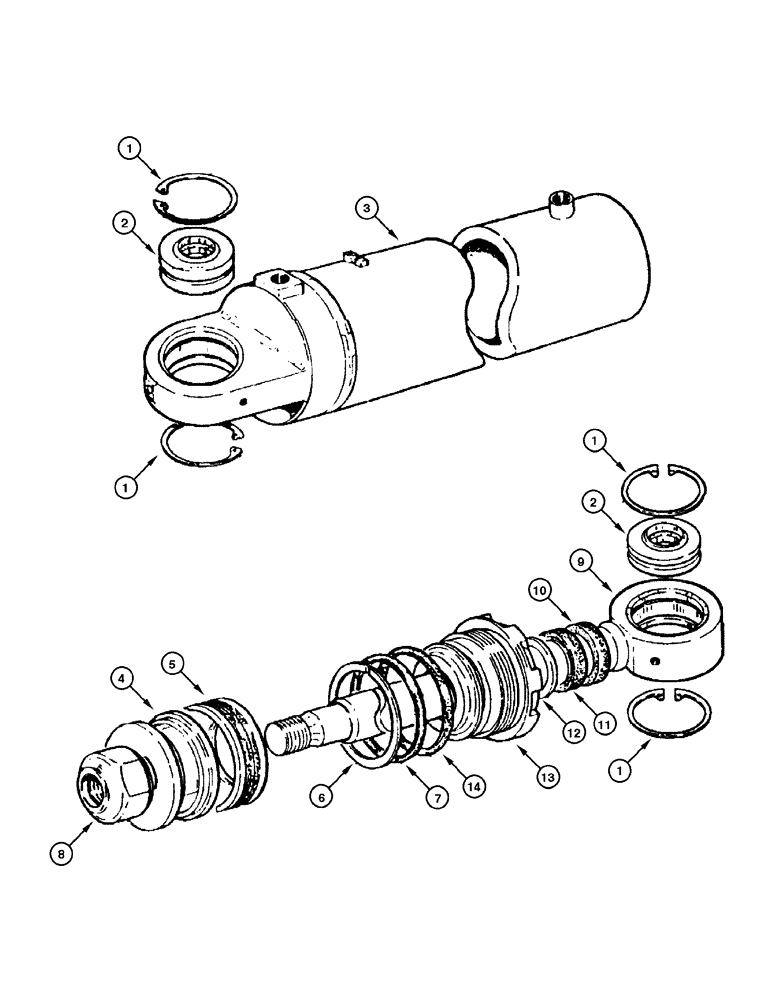

75267304
CYLINDER
articulation RH Assy, Includes items 1 - 14
1шт.
75213774R
REMAN-HYD CYLINDER
885 MOTOR GRADER TIER 3 (NA) ASN N8AF05110, articulation RH Assy (1/08-), Reman for New PN 75267304
1шт.
75213774C
CORE-HYD CYLINDER
Return Number
1шт.
1
11061076
SNAP RING,M62, Int
lock
8шт.
2
70928851
BEARING ASSY
4шт.
3
75213542
LINER, ENGINE CYLIND,585 mm Length
RH
1шт.
4
79038730
PISTON
2шт.
5
8291506
SEALING RING
SEALRING
2шт.
6
8297295
RING,73.8mm ID x 80mm OD x 1.5mm Thk
anti-extrusion
2шт.
7
14465180
O-RING,72.62mm ID x 3.53mm Width
2шт.
8
8281325
NUT
2шт.
9
75213768
ROD,45mm OD x 533mm L
2шт.
10
8288822
SEAL
2шт.
11
8297294
GASKET
2шт.
12
8297296
RING
seal
2шт.
13
75220934
BASE PLATE
2шт.
14
14465480
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
2шт.
75209587
SEAL
repair
1шт.
Kit includes items 3, 4, 6, 7, 9, 11, 13, 14
1шт.
75267307
CYLINDER
articulation LH Assy, Includes items 1 - 14
1шт.
75213779R
REMAN-HYD CYLINDER
885 MOTOR GRADER TIER 3 (NA) ASN N8AF05110, Articulation LH Assy (1/08-), Reman for New PN 75267307
1шт.
75213779C
CORE-HYD CYLINDER
Return Number
1шт.
1
11061076
SNAP RING,M62, Int
lock
8шт.
2
70928851
BEARING ASSY
4шт.
3
75213543
LINER, ENGINE CYLIND,585 mm Length
LH
1шт.
4
79038730
PISTON
2шт.
5
8291506
SEALING RING
SEALRING
2шт.
6
8297295
RING,73.8mm ID x 80mm OD x 1.5mm Thk
anti-extrusion
2шт.
7
14465180
O-RING,72.62mm ID x 3.53mm Width
2шт.
8
8281325
NUT
2шт.
9
75213768
ROD,45mm OD x 533mm L
2шт.
10
8288822
SEAL
2шт.
11
8297294
GASKET
2шт.
12
8297296
RING
seal
2шт.
13
75220934
BASE PLATE
2шт.
14
14465480
O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro
2шт.
75209587
SEAL
repair
1шт.
Kit includes items 3, 4, 6, 7, 9, 11, 13, 14
1шт.
Выбрано товаров: 38
