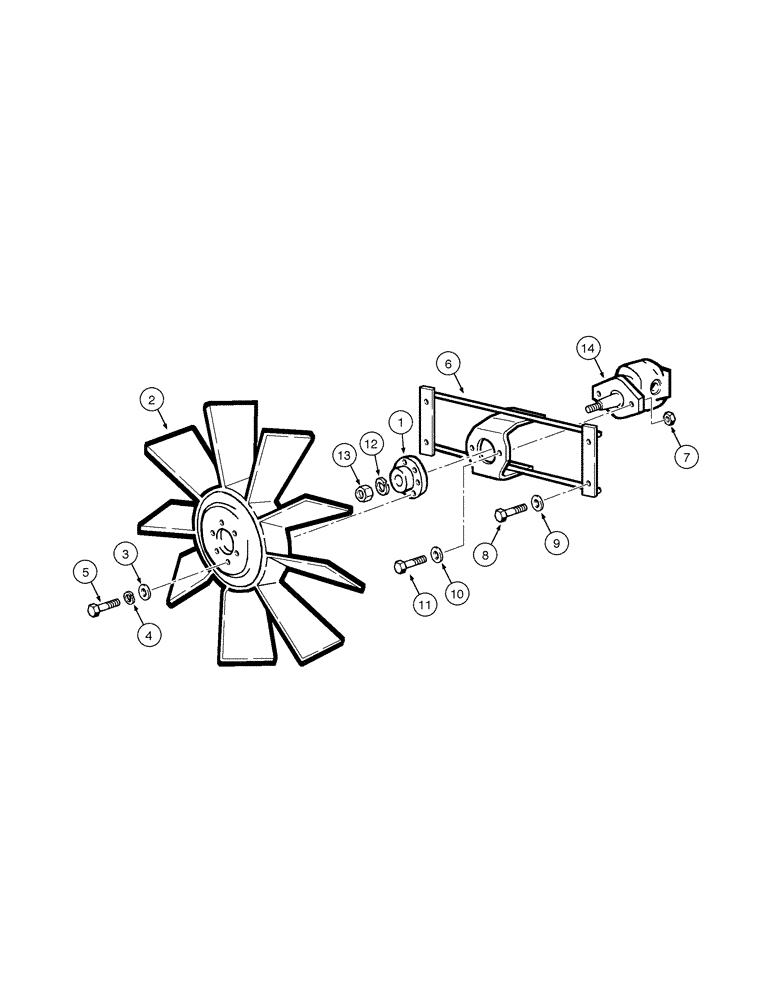

Запчасти Case 885 (02-06[01]) - COOLING SYSTEM - FAN - MOUNTING (02) - ENGINE

1

87354991

HUB

1шт.

2

73164370

FAN

1шт.

3

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

6шт.

4

70910287

LOCK WASHER

6шт.

5

70927400

BOLT

6шт.

6

75261041

SUPPORT

1шт.

6

84177808

SUPPORT

, Start Serial: N9AF05153

1шт.

7

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

9

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

10

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

11

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

13

232-2448

NUT,1/2"-20, GC

1шт.

14

REF

INSTRUCTION

MOTOR hydraulic Assy

1шт.

Page 08-72

1шт.
