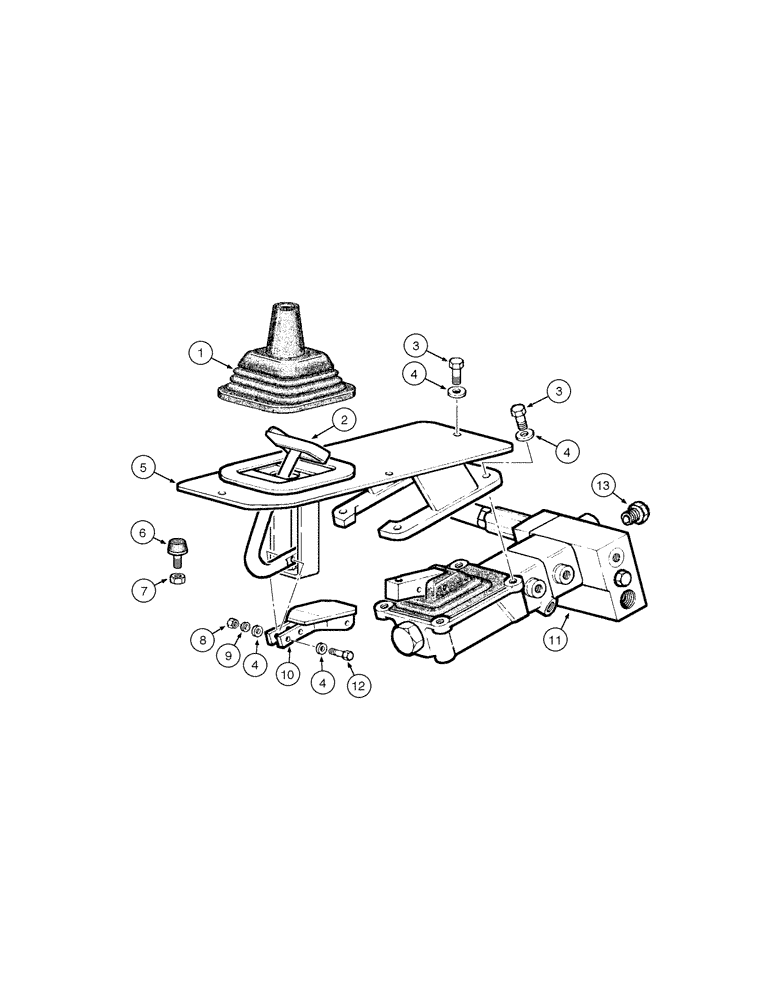

Запчасти Case 885 (07-10[01]) - SERVICE BRAKE PEDAL (07) - BRAKES

1

75214658

BOOT

1шт.

2

75324598

PEDAL

1шт.

3

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

4

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

12шт.

5

87671292

COVER

1шт.

6

79037282

PAD

1шт.

7

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

10

87671866

SUPPORT

1шт.

11

REF

INSTRUCTION

BRAKE VALVE

1шт.

Page 07-14

1шт.

12

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

13

10119440

PLUG,M18 x 1.5 x 16, Brass

1шт.
