Запчасти Case 885 (04.20[00]) - HEADLIGHT AND LANTERN - CAB (04) - ELECTRICAL SYSTEMS

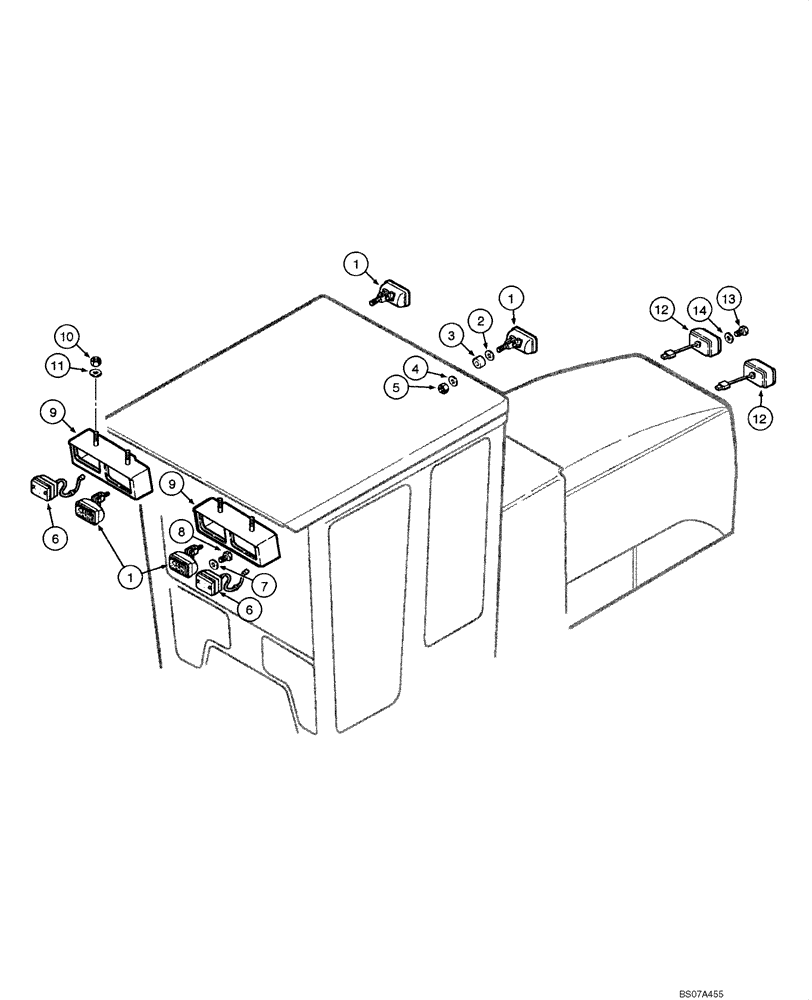

Схема запчастей Case 885 - (04.20[00]) - HEADLIGHT AND LANTERN - CAB (04) - ELECTRICAL SYSTEMS
12
1
3
14
7
10
2
9
1
4
13
9
6
6
12
1
8
11
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Head-Light, See Figure 04.23

4шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

3

79089658

PAD

4шт.

4

75252602

WASHER,10.5mm ID x 28.5mm OD x 1.2mm Thk

4шт.

5

12104121

NUT

4шт.

6

REF

INSTRUCTION

Light, Turn Signal, See Figure 04.25

2шт.

7

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

4шт.

8

70928182

SCREW

4шт.

9

75267959

SUPPORT

Bracket, LH

1шт.

9

75267960

SUPPORT

Bracket, RH

1шт.

10

12104121

NUT

3шт.

11

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

12

REF

INSTRUCTION

Road Traffic Light, Left Hand, See Figure 04.25

1шт.

12

REF

INSTRUCTION

Road Traffic Light, Right Hand, See Figure 04.25

1шт.

13

10977611

SCREW

4шт.

14

11195471

LOCK WASHER

4шт.

Выбрано товаров: 16
