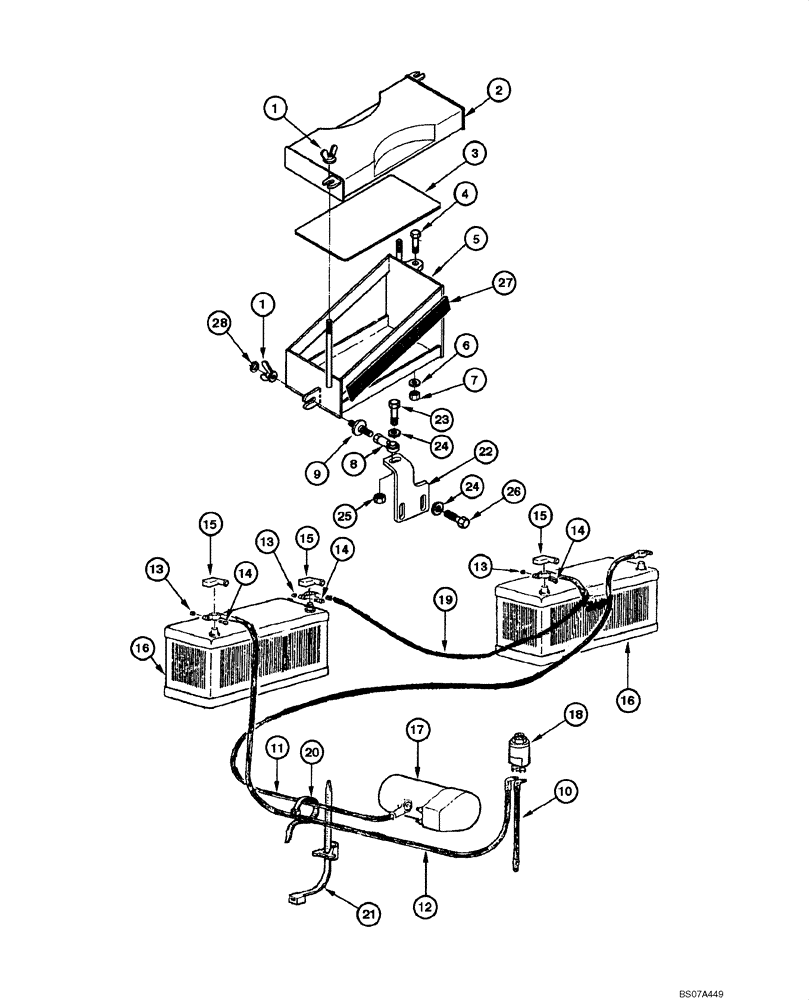

Запчасти Case 885 (04.11[00]) - ELECTRIC SYSTEM - BATTERY (04) - ELECTRICAL SYSTEMS

1

73125821

NUT

6шт.

2

75326442

COVER

2шт.

3

75249924

PLATE

2шт.

4

15541231

BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

5

75324318

SUPPORT

Right Hand

1шт.

5

75324207

SUPPORT

Left Hand

1шт.

6

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

7

16105011

NUT,Hex, M12 x 1.25, Cl 8

4шт.

8

75324262

BOLT

2шт.

9

70617932

TRACK ROD END

2шт.

10

75239845

ELECTRIC CABLE,700mm L

Ground

1шт.

11

76022498

ELECTRIC CABLE

Positive

1шт.

12

75322262

ELECTRIC CABLE

Negative, Incl. Refs. 13 - 15

1шт.

13

16100818

NUT

3шт.

14

11947708

BOLT

3шт.

15

8321668

BOOT

3шт.

16

BMF31TW

WET BATTERY

For U.S. market

2шт.

16

CBMF31TW

WET BATTERY

For CANADA market

2шт.

17

REF

INSTRUCTION

Starter Assy, See Figure 04.01

1шт.

18

REF

INSTRUCTION

Master Key, See Figure 04.09

1шт.

19

75324401

ELECTRIC CABLE

1шт.

20

75201641

CLAMP

4шт.

21

75284071

CLAMP

6шт.

22

75324253

SUPPORT

Left Hand

1шт.

22

75324372

SUPPORT

Right Hand

1шт.

23

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

24

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

25

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

26

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

27

86507012

SNAP RING,M6, Ext

2шт.

28

75325871

RUBBER SEAL,38mm W x 338mm L x 5mm Thk

1шт.
