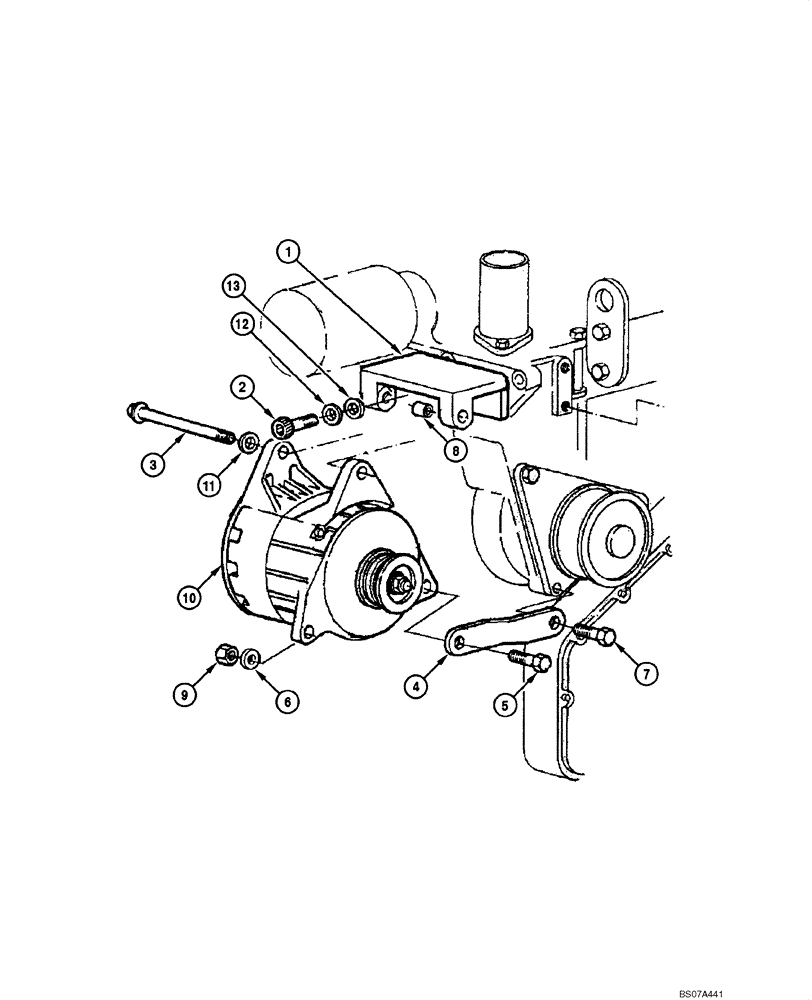

Запчасти Case 885 (04.02[00]) - ALTERNATOR 80A - ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

87364144

BRACKET, SUPPORTING

1шт.

2

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

4

75327809

SUPPORT

1шт.

5

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

1шт.

6

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

8

75260708

SPACER,10.5mm ID x 20mm OD x 29mm L

1шт.

9

10719321

NUT,M12 x 1.75, Cl 10

1шт.

10

REF

INSTRUCTION

See Fig. 04.03

1шт.

11

12638601

WASHER,M10 x 18 x 2

1шт.

12

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

13

892-11008

LOCK WASHER,8mm ID

3шт.
