Запчасти Case 885 (09.02[00]) - REAR CHASSIS (09) - CHASSIS

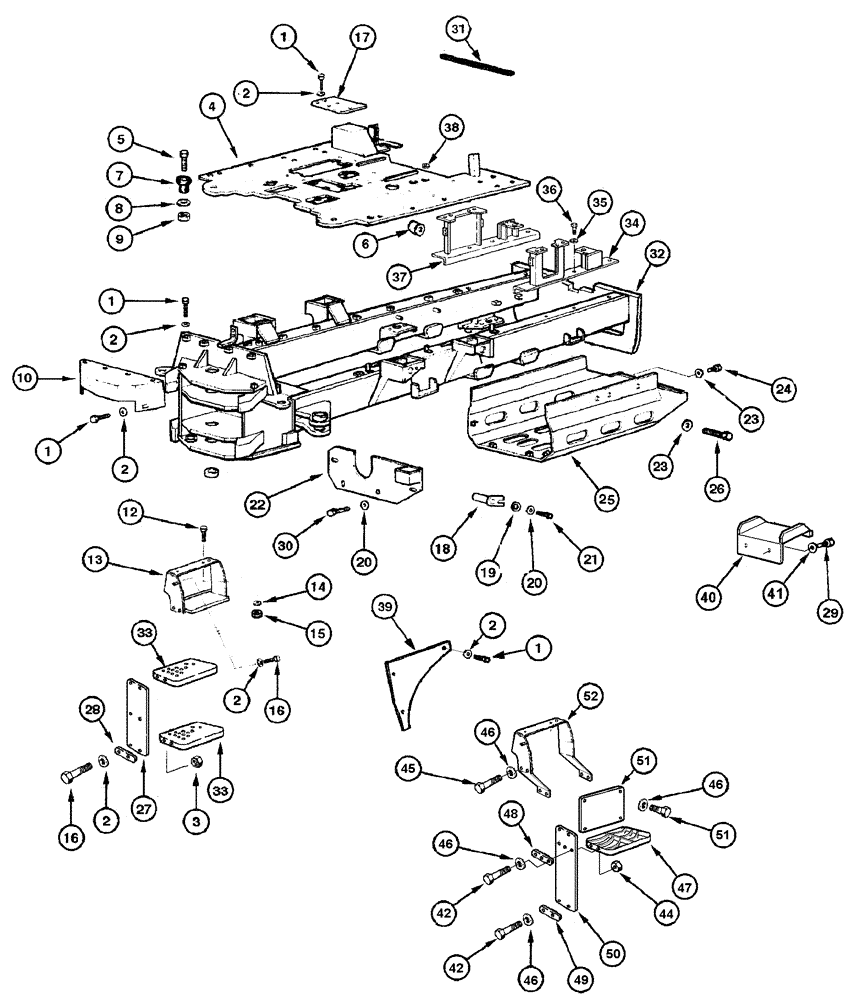

Схема запчастей Case 885 - (09.02[00]) - REAR CHASSIS (09) - CHASSIS
17
24
44
2
52
41
51
14
33
4
32
2
48
12
34
2
29
23
16
10
51
33
1
2
16
1
2
9
27
47
40
46
3
15
45
22
28
46
3
38
46
25
30
29
42
1
42
23
1
31
49
20
46
21
35
13
5
33
24
7
50
37
2
18
19
20
2
27
6
26
16
36
8
39

Артикул

Название

Примечание

Количество

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

29шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

29шт.

3

16100821

NUT,M8, Cl 10

16шт.

4

87357835

FLOOR

1шт.

5

15981531

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

6

70684837

BUSHING,31.72mm ID x 63.75mm OD x 85.85mm L

4шт.

7

76022229

INSULATOR BLOCK

2шт.

8

75254313

WASHER,16.5mm ID x 58mm OD x 4.76mm Thk

2шт.

9

15504021

NUT,M16 x 1.5

2шт.

10

75320230

GUARD

1шт.

11

75213759

BUSHING,66.84mm ID x 79.38mm OD x 25.4mm L

3шт.

12

15988431

BOLT,Hex, M20 x 1.5 x 65mm, Cl 10.9

4шт.

13

87351034

LADDER

Right Hand

1шт.

13

87351103

LADDER

Left Hand

1шт.

14

70677012

WASHER,20.64mm ID x 44.45mm OD x 7.94mm Thk

20шт.

15

12575127

NUT,M20

20шт.

16

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

16шт.

17

75249861

COVER

1шт.

18

75248739

PIN,31.62mm OD x 171mm L

4шт.

19

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

22

75267205

PLATE

1шт.

23

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

12шт.

24

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

25

87547592

GUARD

1шт.

26

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

27

75324582

PLATE

4шт.

28

75267263

PLATE

12шт.

29

11112131

SCREW,Hex, M12 x 20mm, Cl 10.9, Full Thd

8шт.

30

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

71100431

KIT DEPOT ASSEMBLING

1шт.

32

87542681

FRAME

CHASSIS, REAR

1шт.

33

75267266

LADDER

STEP, Lower

4шт.

34

75323328

SUPPORT

1шт.

35

70677010

WASHER,16.67mm ID x 38.1mm OD x 7.94mm Thk

6шт.

36

14258430

BOLT,Hex, M16 x 1.5 x 60mm

6шт.

37

75324392

SUPPORT

1шт.

38

75321577

GROMMET,15.5mm ID x 36.5mm OD x 19mm Thk

2шт.

39

87351162

PLATE

GUARD, Side Panel Right Hand

1шт.

39

87351145

COVER

GUARD, Side Panel Left Hand

1шт.

40

75266724

LADDER

Ladder

2шт.

41

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

42

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

, Start Serial: N9AF05150

36шт.

43

10979321

BOLT,Hex, M10 x 14mm, Cl 8.8, Full Thd

, Start Serial: N9AF05150

8шт.

44

11701721

NUT,M10, Cl 10

, Start Serial: N9AF05150

40шт.

45

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

, Start Serial: N9AF05150

8шт.

46

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

, Start Serial: N9AF05150

48шт.

47

87434472

STEP

, Start Serial: N9AF05150

6шт.

48

84153139

MOUNTING PLATE

, Start Serial: N9AF05150

16шт.

49

84153143

MOUNTING PLATE

, Start Serial: N9AF05150

4шт.

50

84152365

RUBBER BAND

, Start Serial: N9AF05150

4шт.

51

84155959

MOUNTING PLATE

, Start Serial: N9AF05150

2шт.

52

84155965

LADDER

LH, Start Serial: N9AF05150

1шт.

52

84155977

LADDER

RH

1шт.

Выбрано товаров: 55
