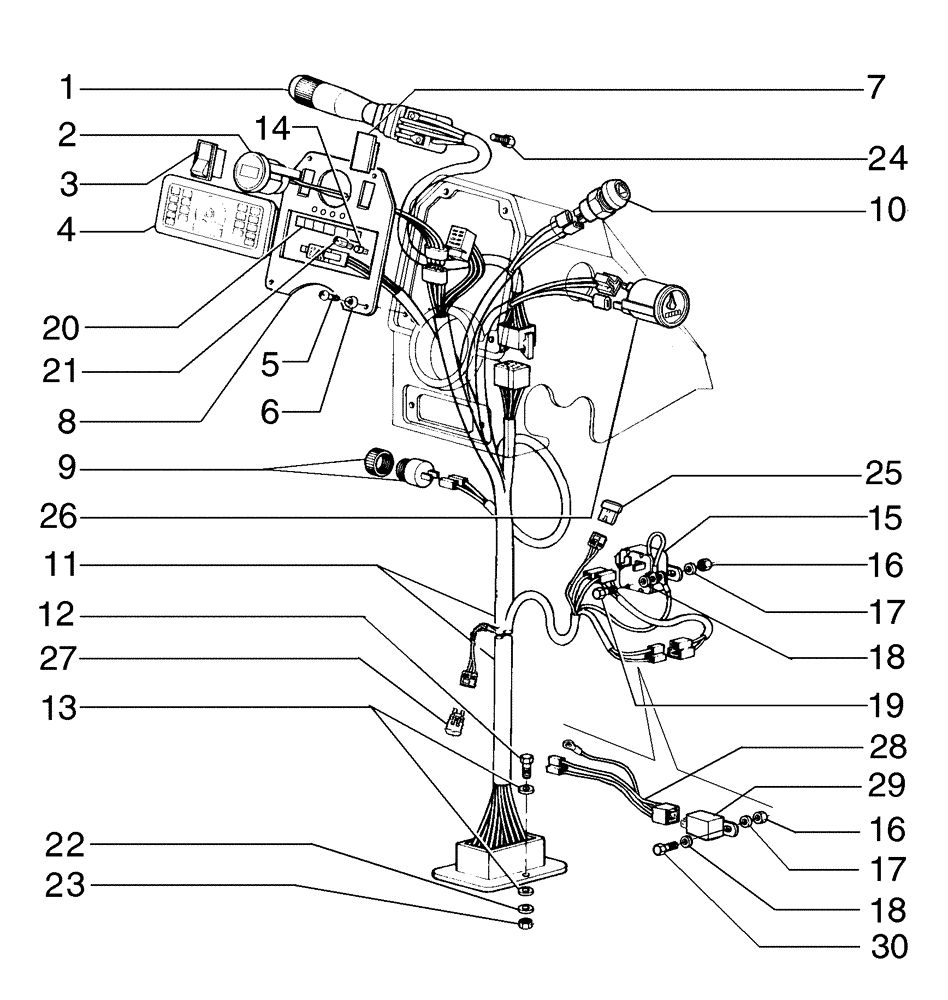

Запчасти Case 885 (04-10[01]) - ELECTRICAL SYSTEM - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

73163234

SWITCH

1шт.

2

73162493

INDICATOR

speed/malfuction

1шт.

3

75251043

SWITCH

1шт.

4

87523133

DASHBOARD

instruments

1шт.

4

84197204R

REMAN-ELECT MONITOR

885 MOTOR GRADER TIER 3 (BR) ASN N8AF05110 (8/08-), Reman for New PN 87523133

1шт.

4

84197204C

CORE-MONITOR

Return Number

1шт.

5

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

6

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

4шт.

7

5151033

PLASTIC PLUG

1шт.

8

87687133

PLATE

1шт.

9

75241340

HORN

1шт.

10

85803974

PUSH BUTTON

1шт.

11

87655576

HARNESS

steering column

1шт.

12

76021290

SCREW,#6 - 32 x 1"

3шт.

13

70917458

WASHER

6шт.

14

75241301

POWER SOCKET

bulb

6шт.

15

70663928

FLASHER UNIT

1шт.

16

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

17

70904203

LOCK WASHER

2шт.

18

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

4шт.

19

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

20

87670367

DATA PLAQUE

1шт.

21

14143890

BULB

6шт.

22

70917479

NUT

3шт.

23

70917479

NUT

3шт.

24

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

3шт.

25

A187813

DIODE

1шт.

26

75220416

HOURMETER

1шт.

27

75322270

ELEC CONNECTOR

1шт.

28

84214019

WIRE HARNESS

, Start Serial: N9AF05154

1шт.

29

84255021

FLASHER UNIT

, Start Serial: N9AF05154

1шт.

30

13312917

SCREW,Cross Oval Hd, M6 x 14mm, Cl 5.8

, Start Serial: N9AF05154

2шт.
