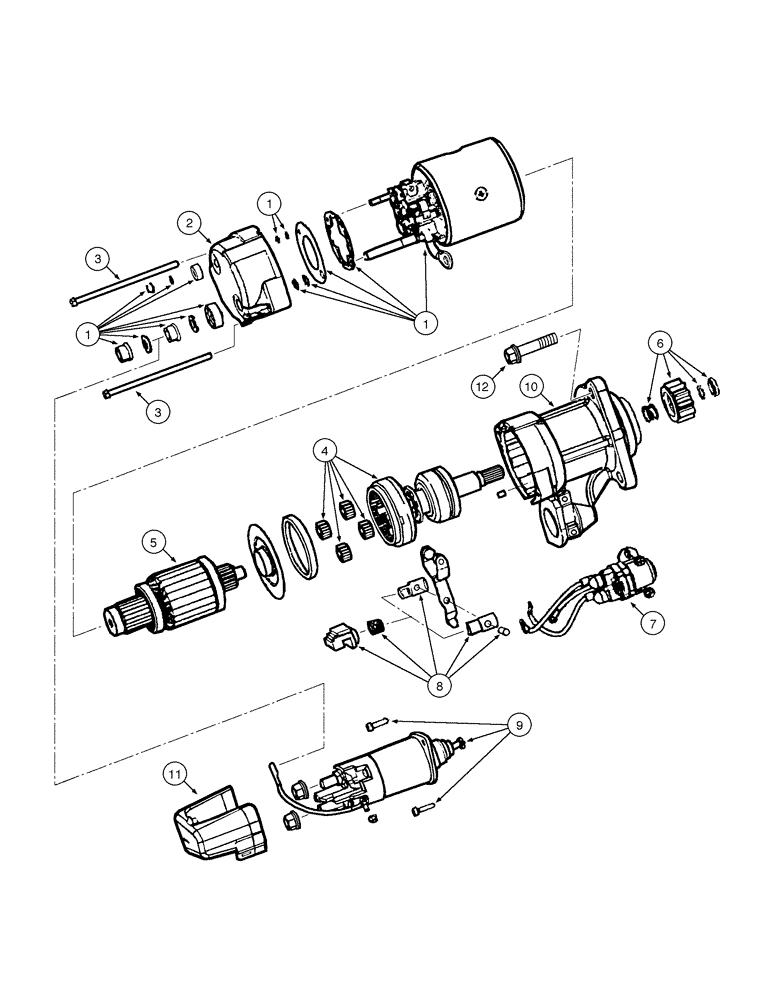

Запчасти Case 885 (04-02[01]) - STARTER - ASSEMBLY (04) - ELECTRICAL SYSTEMS

75264240

STARTER MOTOR

Assy

1шт.

75264240R

REMAN-STARTER

885 MOTOR GRADER TIER 3 (BR) ASN N8AF05110, Assy (8/08-)

1шт.

75264240C

CORE-STARTER

Return Number

1шт.

1

71102752

HOUSING

1шт.

2

71102758

COVER

rear

1шт.

3

71102760

SCREW

2шт.

4

71102755

SHAFT

1шт.

5

71102759

ARMATURE

1шт.

6

71102753

ENGINE OVERHAUL KIT

1шт.

7

71102757

RELAY

1шт.

8

71102751

ENGINE OVERHAUL KIT

1шт.

9

71102754

SOLENOID

1шт.

10

71102761

HOLDER

front

1шт.

11

71102756

COVER

1шт.

12

75288059

SCREW

3шт.
