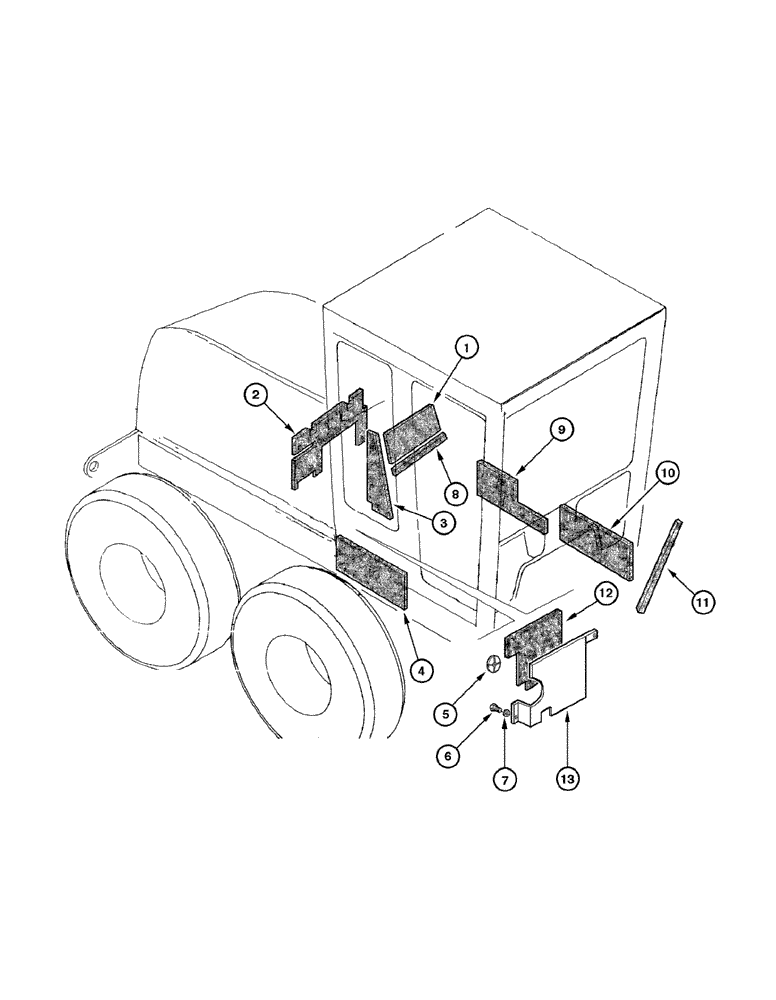

Запчасти Case 885 (09-046[01]) - NOISE INSULATOR (09) - CHASSIS

1

75260567

FOAM INSULATION

1шт.

2

75260564

FOAM INSULATION

1шт.

3

75257355

INSULATING PANEL

LH

1шт.

3

75257356

INSULATING PANEL

RH

1шт.

4

75258119

INSULATING PANEL

1шт.

5

75256034

CLIP

16шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

6шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

8

75257354

INSULATING PANEL

rear

1шт.

9

75257096

INSULATING PANEL

side RH

1шт.

10

75257095

INSULATING PANEL

side front

2шт.

11

71100480

RUBBER INSULATOR

1шт.

12

75260566

FOAM INSULATION

RH

1шт.

12

75260565

FOAM INSULATION

LH

1шт.

13

75324687

PLATE

panel LH

1шт.

13

75324686

PLATE

panel RH

1шт.
