Запчасти Case 885 (08-048[01]) - ARTICULATION HYDRAULIC CIRCUIT (08) - HYDRAULICS

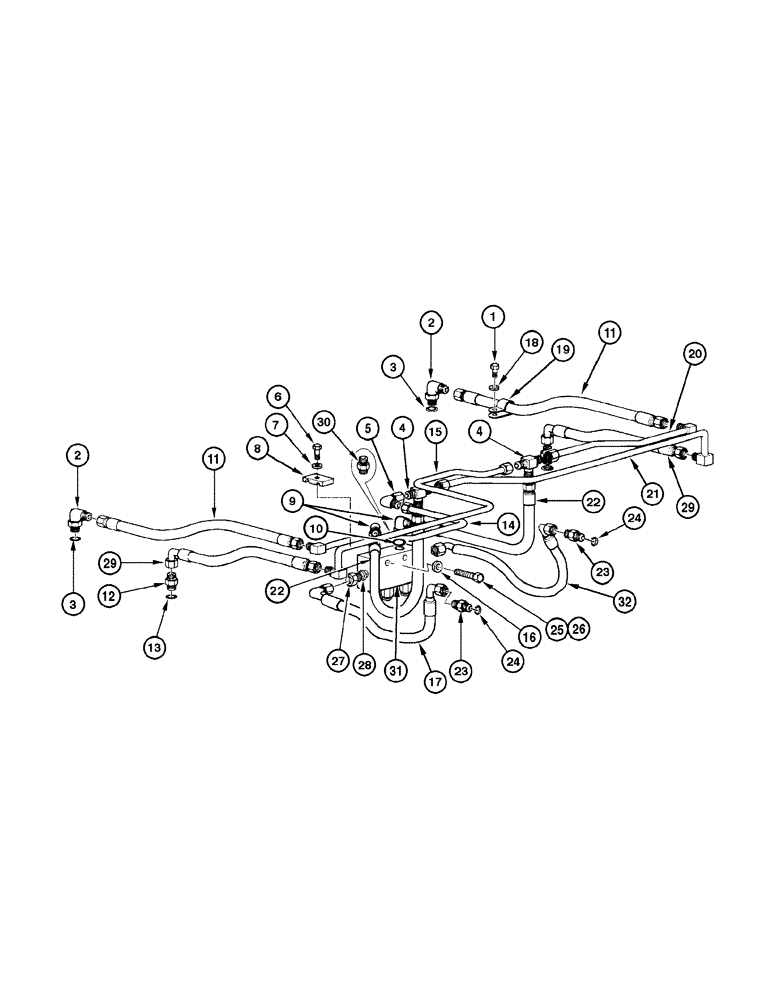

Схема запчастей Case 885 - (08-048[01]) - ARTICULATION HYDRAULIC CIRCUIT (08) - HYDRAULICS
1
15
32
27
4
5
19
3
3
24
9
31
22
11
22
28
20
23
12
2
8
2
6
18
10
23
29
4
16
30
1
26
13
29
21
11
24
25
7

Артикул

Название

Примечание

Количество

1

70927541

SCREW

1шт.

2

70923905

ELBOW

2шт.

3

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

70928808

3 WAY CONNECTION

2шт.

5

70921279

ELBOW

1шт.

6

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

8

70623355

COLLAR

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

10

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

75255796

HYDRAULIC HOSE

2шт.

12

70922457

HYD CONNECTOR

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

75248980

RIGID TUBE

1шт.

15

75248981

RIGID TUBE

1шт.

16

70630753

WASHER

4шт.

17

75320494

FLEXIBLE HOSE

1шт.

18

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

1шт.

19

70929344

CLAMP

1шт.

20

75248982

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 304, 169 mm Length

1шт.

21

75248979

RIGID TUBE

1шт.

22

75251155

FLEXIBLE HOSE

2шт.

23

70922522

HYD CONNECTOR

2шт.

24

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

25

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

26

11701721

NUT,M10, Cl 10

2шт.

27

70922457

HYD CONNECTOR

2шт.

28

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

29

75255798

HOSE,9.5mm ID x 405mm L, SAE 100R2

2шт.

30

70921409

HYD CONNECTOR

2шт.

31

REF

INSTRUCTION

VALVE retainer Assy

1шт.

Page 08-110

1шт.

32

75251173

FLEXIBLE HOSE

1шт.

Выбрано товаров: 33
