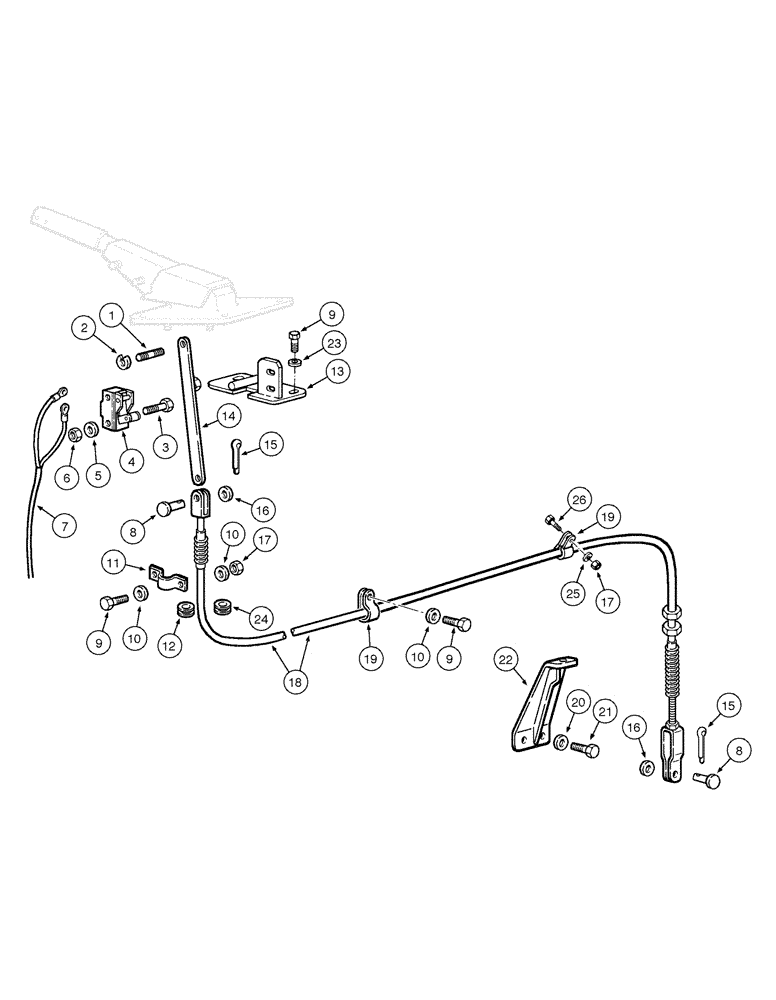

Запчасти Case 885 (07-02[01]) - PARKING BRAKE - LINKAGE (07) - BRAKES

1

75249544

PIN,8mm OD x 25mm L

1шт.

2

11087971

CIRCLIP,M8

2шт.

3

10372711

SCREW

2шт.

4

76021318

SWITCH

1шт.

5

11195371

LOCK WASHER

2шт.

6

16101711

NUT,M3, Cl 8

2шт.

7

75249889

ELECTRIC CABLE

1шт.

8

70917646

PIN

2шт.

9

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

10

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

5шт.

11

71004339

RETAINER COLLAR

1шт.

12

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

13

87580639

PAD

1шт.

14

87357580

SUPPORT

1шт.

15

70918448

COTTER PIN,3/32" x 1"

2шт.

16

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

2шт.

17

16100821

NUT,M8, Cl 10

2шт.

18

87357574

CABLE,3980mm L

1шт.

19

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12 mm dia.

3шт.

20

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

21

11114031

BOLT,Hex, M12 x 90, 10.9

2шт.

22

87357577

SUPPORT

1шт.

23

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

24

10397380

GROMMET

1шт.

25

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

26

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.
