Запчасти Case 885 (06-54[01]) - FRONT AXLE - SUPPORT BEARING (06) - POWER TRAIN

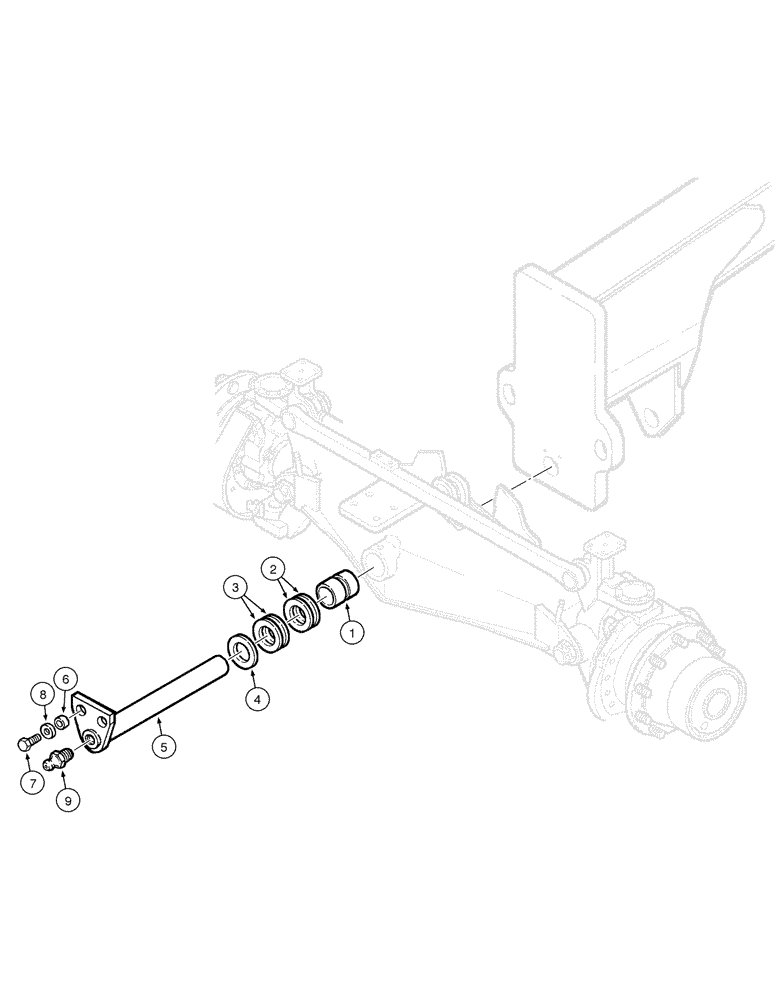

Схема запчастей Case 885 - (06-54[01]) - FRONT AXLE - SUPPORT BEARING (06) - POWER TRAIN
6
8
2
7
5
3
9
4
1

Артикул

Название

Примечание

Количество

1

73163363

BUSHING,50.88mm ID x 65.08mm OD x 70mm L

2шт.

2

73135173

WASHER,52.32mm ID x 101.6mm OD x 1.52mm Thk

1.52mm

1шт.

3

73135174

WASHER,52.32mm ID x 101.6mm OD x 3.42mm Thk

3.42mm

1шт.

4

75327405

SHIM,52.32mm ID x 101.6mm OD x 1mm Thk

1шт.

5

75255727

SHAFT

1шт.

6

73153515

SPACER,13mm ID x 25.4mm OD x 14.5mm L

2шт.

7

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

8

70930850

WASHER,0.53" ID x 1.5" OD x 0.25" Thk

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

Выбрано товаров: 9
