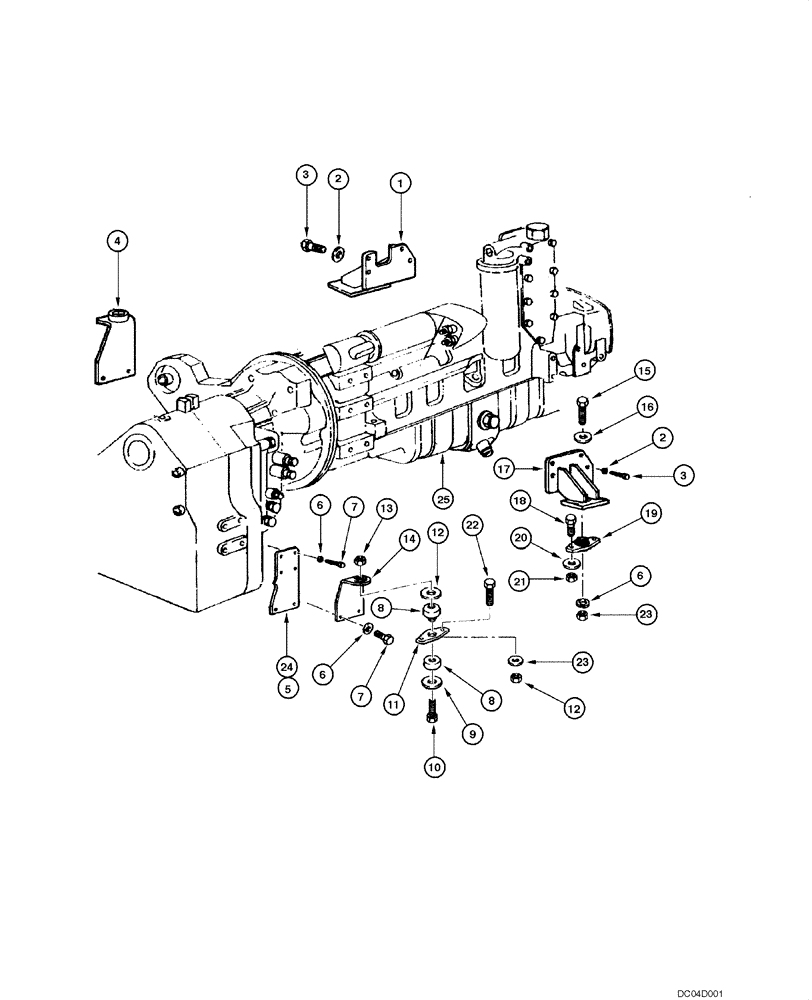

Запчасти Case 885 (02.01[00]) - ENGINE - MOUNTING (02) - ENGINE

1

73163980

BRACKET

RH

1шт.

1

73163981

BRACKET

LH

1шт.

2

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

7шт.

3

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

7шт.

4

75257767

BRACKET

LH

1шт.

5

75249324

SUPPORT

RH

1шт.

6

70927275

WASHER

24шт.

7

11118537

SCREW

12шт.

8

73163867

MOUNTING PARTS

2шт.

9

73163534

WASHER,23.82mm ID x 88.9mm OD x 7.94mm Thk

2шт.

10

15994031

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

2шт.

11

73163953

PLATE

2шт.

12

73163954

WASHER,23mm ID x 89mm OD x 12.7mm Thk

2шт.

13

12164427

NUT,M22 x 1.5, Cl 10

2шт.

14

75257766

BRACKET

1шт.

15

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

2шт.

16

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

17

73163980

BRACKET

1шт.

18

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

19

73163866

ENGINE MOUNT

2шт.

20

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

21

11701721

NUT,M10, Cl 10

4шт.

22

11390531

BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd

4шт.

23

12164121

NUT,M16 x 1.5, Cl 10

6шт.

24

75249325

SUPPORT

1шт.

25

75257752

ENGINE,160kW, 8.3L, 6 Cylinders, W/ Turbocharger

ENGINE ASSY

1шт.

25

75252082

ENGINE

ENGINE ASSY

1шт.

REF

INSTRUCTION

S/N BREAK INFORMATION HBZ00241xx - Tier 2 885; N4AF05xxx - 885 (december 2004 production); N5AF05xxx - 885 (2005 production)

1шт.
