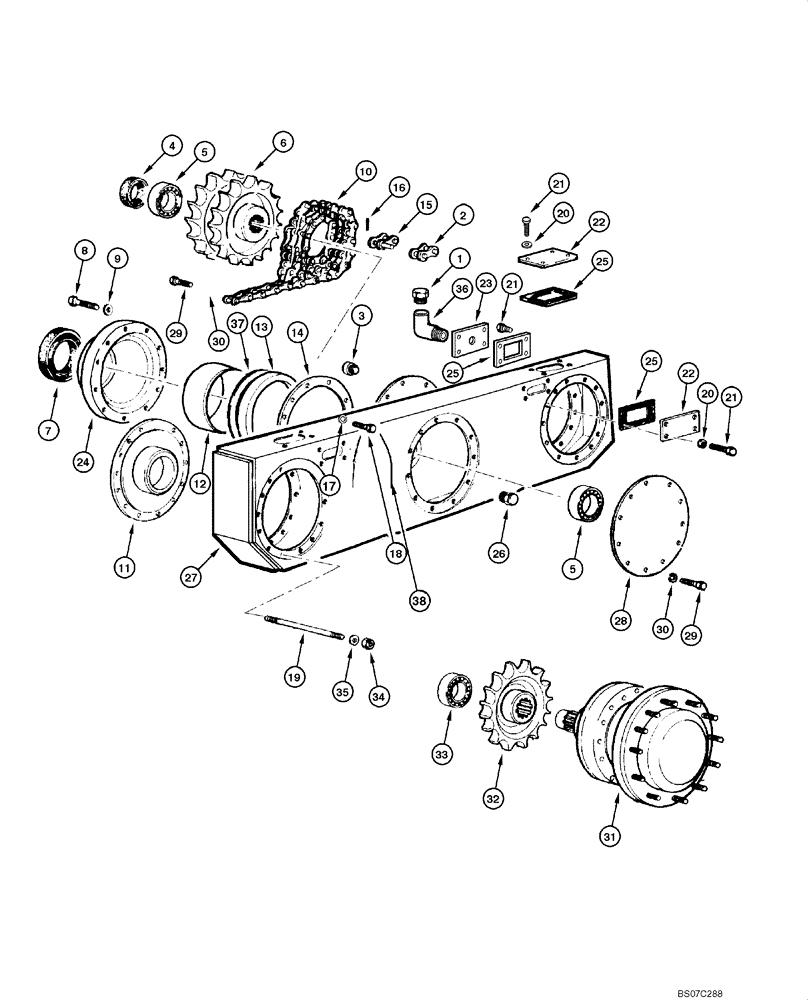

Запчасти Case 885 (06.29[00]) - TANDEM - WHEEL END (FOR CLARK AXLE) (06) - POWER TRAIN

1

70634161

BREATHER

2шт.

2

73161845

LINK,Chain, 31.75mm Pitch

1шт.

3

70901651

PLUG

2шт.

4

73161790

OIL SEAL,52mm ID x 80.3mm OD x 10mm Thk

2шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

4шт.

6

75255564

SPROCKET

2шт.

7

73161790

OIL SEAL,52mm ID x 80.3mm OD x 10mm Thk

2шт.

8

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

9

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

48шт.

10

73161843

CHAIN,Roller, 74 Links x 31.75mm = 2349.5mm

2шт.

11

73161850

COVER

LH Front and RH Rear

2шт.

11

73161851

COVER

LH Rear and RH Front

2шт.

12

75246450

BUSHING,350mm ID x 362.5mm OD x 80mm L

2шт.

13

75258149

COVER

2шт.

14

73155085

SHIM,0.1778mm Thk

4шт.

14

73155086

SHIM,0.127mm Thk

4шт.

14

73155087

SHIM,0.508mm Thk

14шт.

15

73161844

LINK,Chain, 31.75mm Pitch

1шт.

16

73161846

COTTER PIN

8шт.

17

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

18

73161800

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

32шт.

19

75320124

STUD

52шт.

20

10569470

LOCK WASHER

48шт.

21

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

48шт.

22

75257148

COVER

12шт.

23

70901470

HYD CONNECTOR

2шт.

24

75258148

FLANGE

4шт.

25

75257147

GASKET

12шт.

26

70912725

PLUG

4шт.

27

75251706

CASE

2шт.

28

75321978

COVER

2шт.

29

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

60шт.

30

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

60шт.

31

75251577

WHEEL DISC

See Figure 06.27(00)

4шт.

32

73161842

SPROCKET

2шт.

33

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

4шт.

34

12164121

NUT,M16 x 1.5, Cl 10

52шт.

35

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

52шт.

36

70907059

HYD CONNECTOR

2шт.

37

73155650

RING,363mm ID x 440mm OD x 3mm Thk

2шт.

38

70052519

WIRE

2шт.
