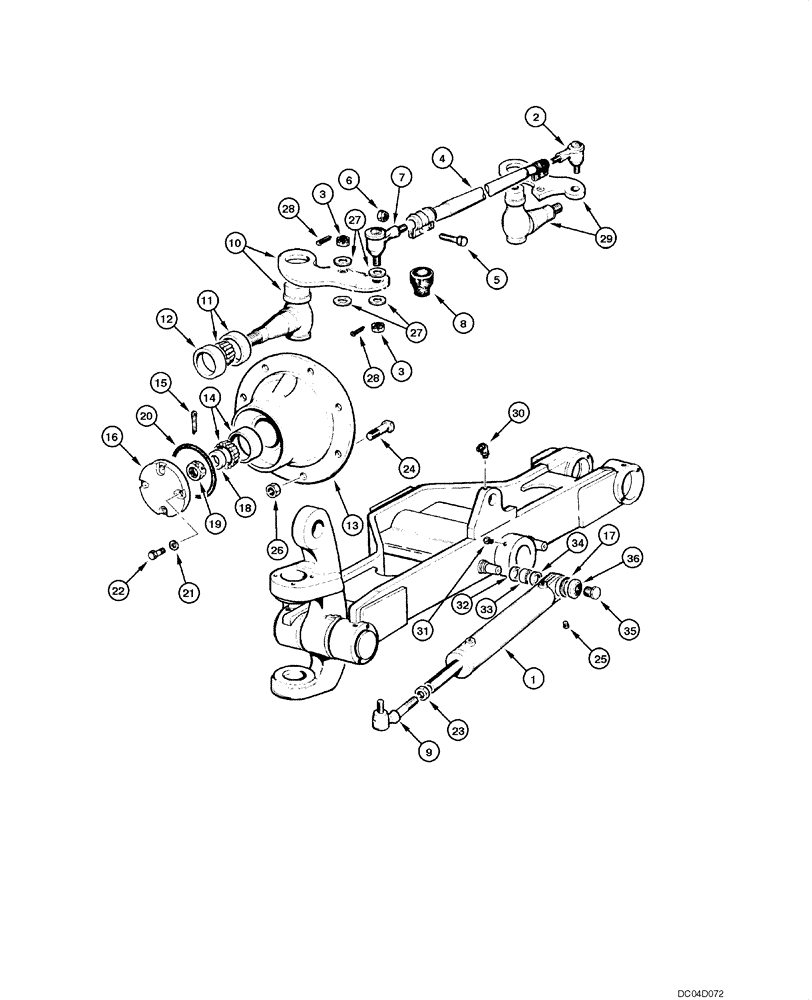

Запчасти Case 885 (06.23[00]) - FRONT AXLE - WHEEL HUB AND STEERING BAR (06) - POWER TRAIN

1

73065116

CYLINDER

2шт.

1

75266846R

REMAN-HYD CYLINDER

885 MOTOR GRADER TIER 2 BTW 024102-024129, Reman for New PN 73065116

2шт.

1

75266846C

CORE-HYD CYLINDER

Return Number

2шт.

75221735

TIE-ROD

1шт.

2

75221276

BALL JOINT

1шт.

3

70916896

NUT

2шт.

4

75221734

TIE-ROD

1шт.

5

11227721

BOLT,Hex, M12 x 1.5 x 55, 8.8

4шт.

6

12575721

NUT

4шт.

7

75221277

BALL JOINT

1шт.

8

75221272

BOOT

2шт.

9

75219488

ARTICULATION

2шт.

10

73124696

STUB AXLE/STEERING S

LEFT

1шт.

11

73124684

TAPERED BEARING,90mm ID x 147mm OD x 40mm W

2шт.

12

73135111

SEAL KIT

1шт.

13

75250726

WHEEL

2шт.

14

70684817

BEARING ASSY

2шт.

15

70901348

COTTER PIN

2шт.

16

73124693

COVER

2шт.

17

70927700

SNAP RING,2", Int, #200

4шт.

18

70932867

WASHER

2шт.

19

70922271

NUT

2шт.

20

70923824

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

21

70910287

LOCK WASHER

8шт.

22

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

23

70911051

NUT

2шт.

24

75250655

WHEEL BOLT,M22 x 1.5 x 76mm, Gr 8

24шт.

25

70910231

PLUG

2шт.

26

75250656

WHEEL NUT

24шт.

27

75220798

SEALING WASHER,32mm ID x 57.15mm OD x 0.8mm Thk

4шт.

28

70904002

COTTER PIN,1/8" x 2"

4шт.

29

73124697

STUB AXLE/STEERING S

RIGHT

1шт.

30

70915276

LUBE NIPPLE

2шт.

31

70914465

LUBE NIPPLE

2шт.

32

73125725

SEAL,38.1mm ID x 50.8mm OD x 6.6mm Thk

2шт.

33

70668028

SPHERICAL BEARING,31.74mm ID x 50.8mm OD x 27.76mm W

2шт.

34

70926957

LOCKING RING

2шт.

35

70928312

SCREW

2шт.

36

73125724

PLUG

2шт.
