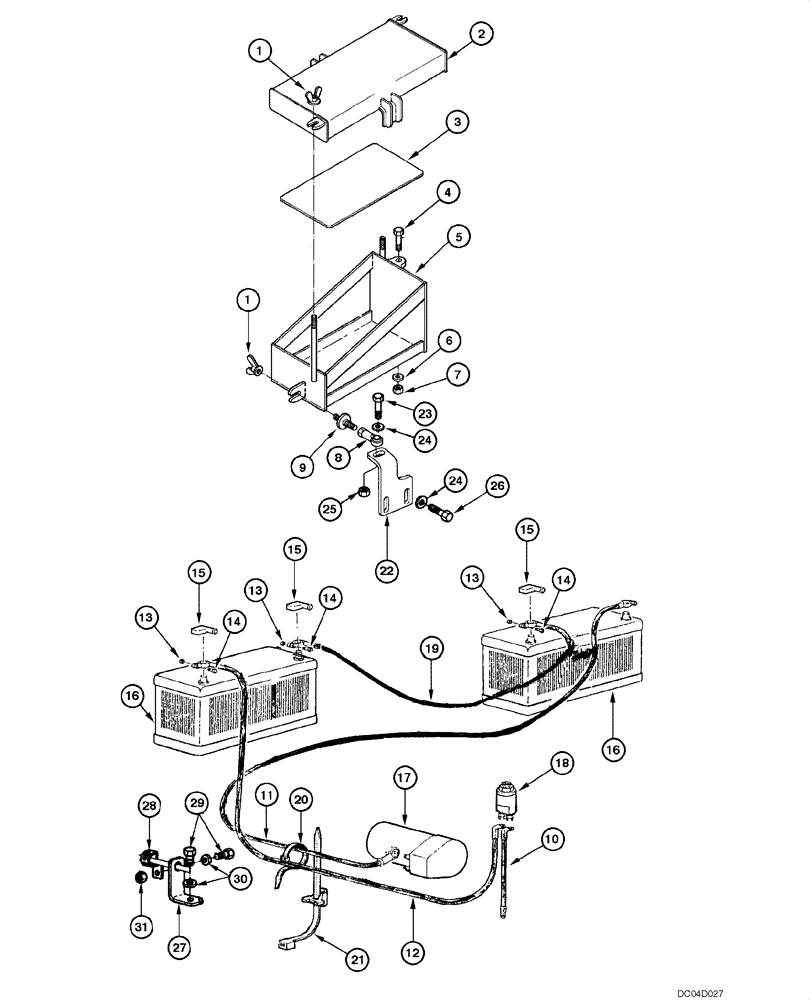

Запчасти Case 885 (04.13[00]) - ELECTRIC SYSTEM - BATTERY (04) - ELECTRICAL SYSTEMS

1

73125821

NUT

6шт.

2

75324344

COVER

2шт.

3

75249924

PLATE

2шт.

4

15541231

BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

5

75324318

SUPPORT

RH

1шт.

5

75324207

SUPPORT

LH

1шт.

6

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

7

16105011

NUT,Hex, M12 x 1.25, Cl 8

4шт.

8

75324262

BOLT

2шт.

9

70617932

TRACK ROD END

2шт.

10

75239845

ELECTRIC CABLE,700mm L

Ground

1шт.

11

75324400

ELECTRIC CABLE

Positive

1шт.

12

75322262

ELECTRIC CABLE

Negative

1шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

14

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

Sq. Hd, M6 x 1 x 30

1шт.

15

8321668

BOOT

1шт.

16

75247128

DRY BATTERY

Order Through Ship Direct

2шт.

17

75323039

STARTER MOTOR

1шт.

17

75264239R

REMAN-STARTER,24V

885 MOTOR GRADER TIER 2 BTW 024102-024129, Reman for New PN 75323039

1шт.

17

75264239C

CORE-STARTER,24V

Return Number

1шт.

18

79073033

IGNITION KEY

1шт.

19

75324401

ELECTRIC CABLE

1шт.

20

75201641

CLAMP

4шт.

21

75284071

CLAMP

6шт.
