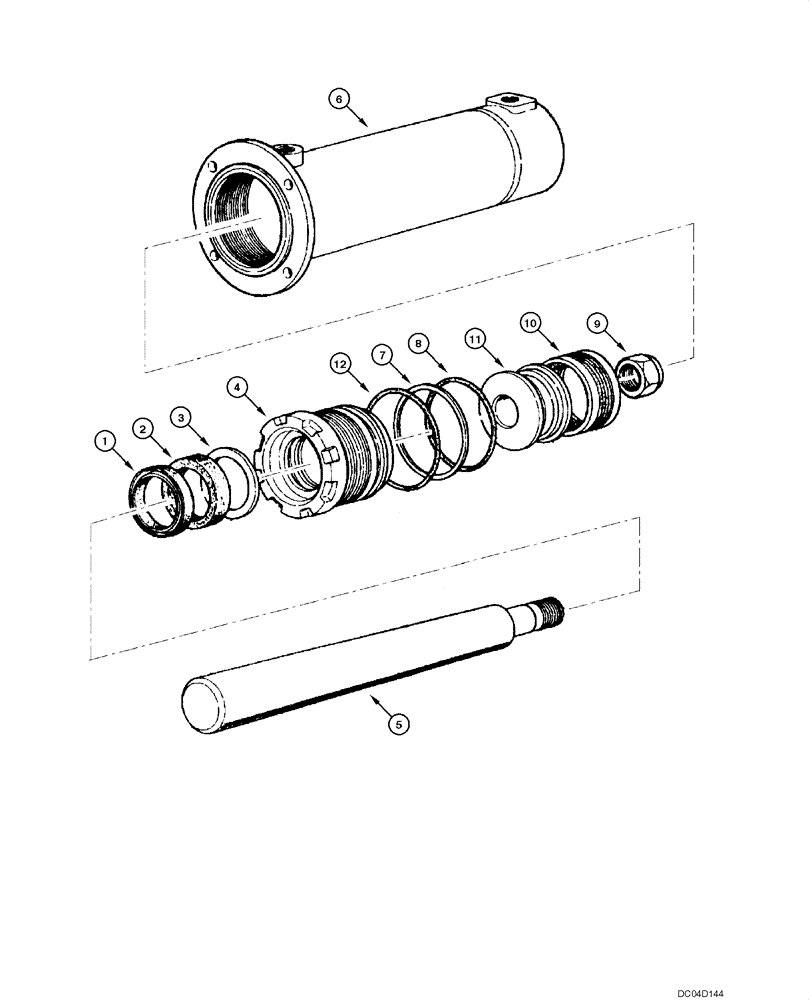

Запчасти Case 885 (08.56[00]) - CYLINDER - SADDLE LOCK (08) - HYDRAULICS

75250238

CYLINDER,Double Acting, 50mm Rod, 168mm Stroke

Saddle

1шт.

1

8288832

O-RING

1шт.

2

8297073

BRAKE LINING

1шт.

3

8297074

RING

1шт.

4

75218748

BASE PLATE

1шт.

5

75250239

ROD,50mm OD x 370mm L

1шт.

6

75250241

CYLINDER,80mm Bore Dia

1шт.

7

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

1шт.

8

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

9

8281325

NUT

1шт.

10

8291506

SEALING RING

SEALRING

1шт.

11

79038730

PISTON

1шт.

12

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

13

75288869

SEAL KIT

Incl 1, 2, 3, 7, 8, 10, 12

1шт.
