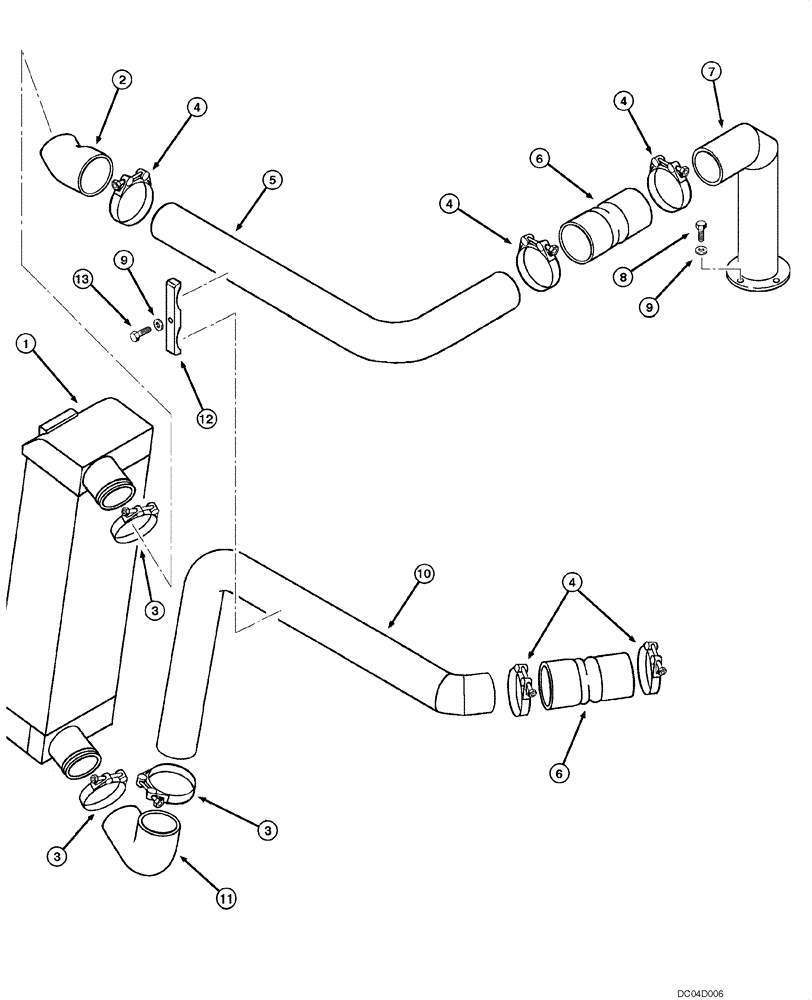

Запчасти Case 885 (02.06[00]) - COOLING SYSTEM - AFTERCOOLER (02) - ENGINE

1

73164347

COOLER ASSY.

1шт.

2

75322711

HOSE,76.20 mm ID, 88.90 mm ID

1шт.

3

L115549

CLAMP,69.85mm - 92.08mm

3шт.

4

L116820

CLAMP,82.55mm - 104.78mm

5шт.

5

75324737

PIPE

1шт.

6

75260116

HOSE

HOSE

2шт.

7

75324758

ELBOW

1шт.

8

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

9

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

10

75324768

PIPE

1шт.

11

75324809

HOSE,76.20 mm ID x 125.00 mm

1шт.

12

75324869

CLAMP

1шт.

13

16044831

SCREW,Hex, M8 x 80mm, Cl 10.9

1шт.
