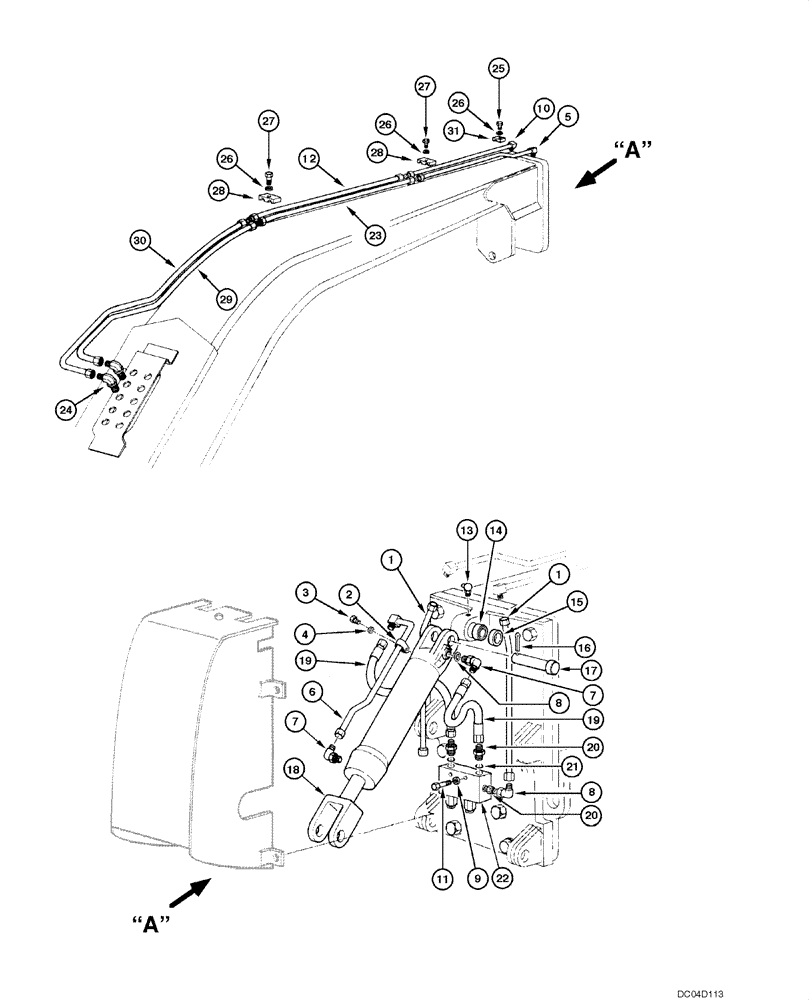

Запчасти Case 885 (08.25[00]) - SCARIFIER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75320120

RIGID TUBE

2шт.

2

70929458

CLAMP

1шт.

3

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

5

75253733

RIGID TUBE

1шт.

6

75252454

RIGID TUBE

1шт.

7

70921402

ELBOW

4шт.

8

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

11701721

NUT,M10, Cl 10

2шт.

10

75253734

TUBE,9.7 mm ID, 12.7 mm OD, 805, 99 mm Length

1шт.

11

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

12

75248890

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 2316 mm Length

1шт.

13

70915276

LUBE NIPPLE

1шт.

14

70928851

BEARING ASSY

1шт.

15

70689717

SPACER,39.62mm ID x 50.8mm OD x 11.94mm L

1шт.

16

70911279

COTTER PIN

1шт.

17

70689718

PIN,38.07mm OD x 125.73mm L

1шт.

18

73067421

CYLINDER,Double Acting, 50.8mm Rod, 311.15mm Stroke

1шт.

18

73067421R

REMAN-HYD CYLINDER

885 MOTOR GRADER TIER 2 BTW 024102-024129

1шт.

18

73067421C

CORE-HYD CYLINDER

Return Number

1шт.

19

75251172

FLEXIBLE HOSE

2шт.

20

70921409

HYD CONNECTOR

2шт.

21

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

73130105

HYDRAULIC VALVE

1шт.

23

75248886

RIGID TUBE,9.7 mm ID, 12.7 mm OD, 2301 mm Length

1шт.

24

70927163

HYD CONNECTOR

2шт.

25

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

26

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

4шт.

27

70921076

SCREW,3/8"-16 x 1 1/4"

2шт.

28

70623355

COLLAR

2шт.

29

75253438

RIGID TUBE

1шт.

30

75253437

RIGID TUBE

1шт.

31

73127629

CLAMP

2шт.
