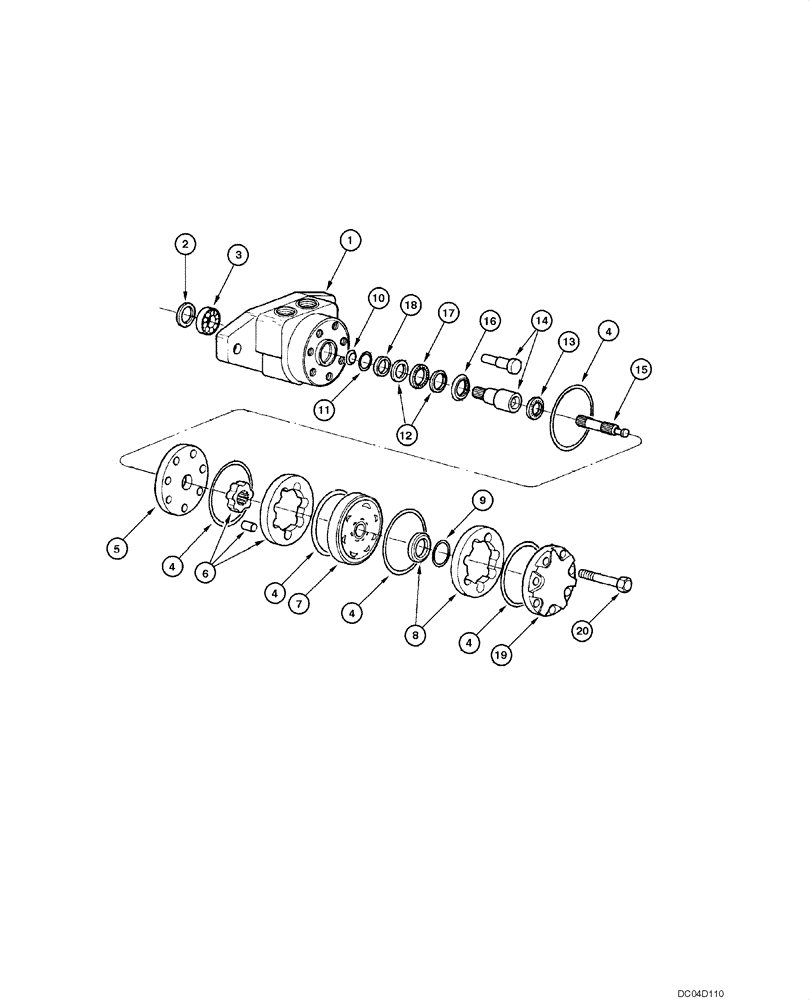

Запчасти Case 885 (08.22[00]) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE HYDRAULIC MOTOR (08) - HYDRAULICS

75258929

HYDRAULIC MOTOR

1шт.

87389984R

REMAN-HYD MOTOR

885 MOTOR GRADER TIER 2 - BTW 024102-024129, Reman for New PN 75258929

1шт.

87389984C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

71100559

HOUSING

HOUSING

1шт.

2

71100574

RUBBER SEAL

RETAINER

1шт.

3

71100573

BEARING ASSY

BEARING

1шт.

4

71100562

SEAL

O-RING

5шт.

5

71100567

PLATE

PLATE

1шт.

6

71100557

GEAR

KIT GEARS

1шт.

7

71100565

HOUSING

HOUSING

1шт.

8

71100566

COVER PLATE

PLATE

1шт.

9

71100563

PLASTIC RING

RING SET

1шт.

10

71100572

WASHER

RING

1шт.

71100560

SHAFT

KIT KIT SHAFT

1шт.

11

71100575

RING

RING

1шт.

12

71100570

RUBBER SEAL

RING

2шт.

13

71100568

BEARING ASSY

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

15

71100558

SHAFT

SHAFT

1шт.

16

71100569

BEARING ASSY

BEARING

1шт.

17

71100571

BEARING ASSY

BEARING

1шт.

18

71100564

RUBBER SEAL

RETAINER

1шт.

19

71100561

COVER

COVER

1шт.

20

71100556

SCREW

BOLT

7шт.
