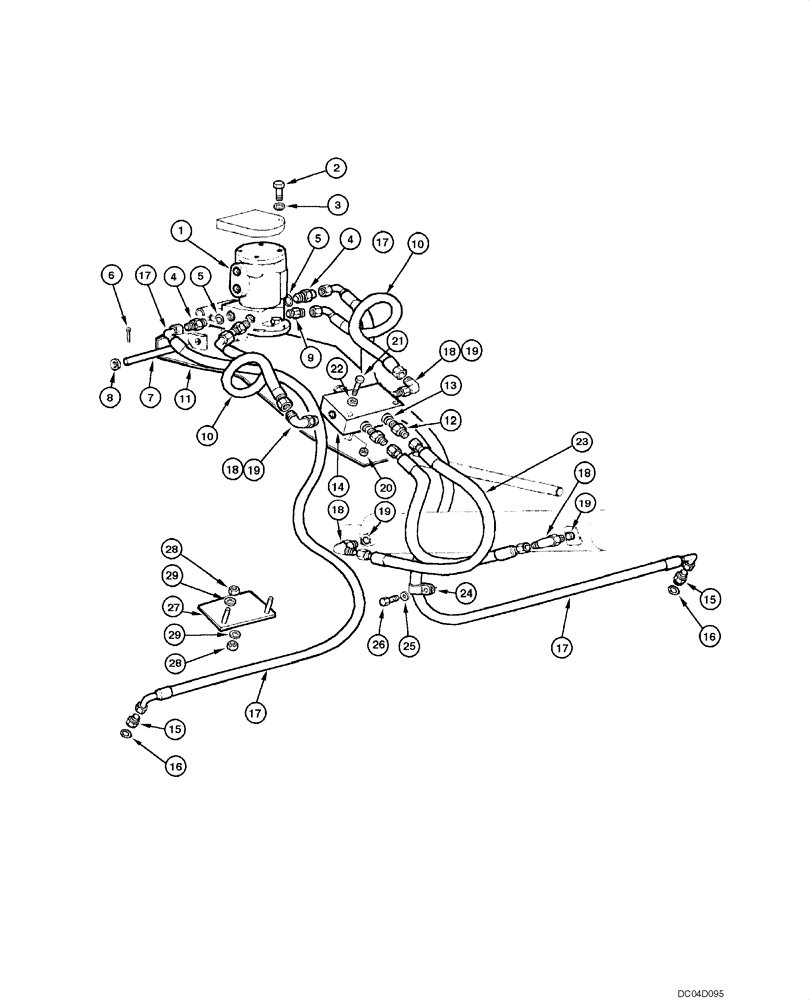

Запчасти Case 885 (08.07[00]) - BLADE HYDRAULIC CIRCUIT - SIDE SHIFT AND TILT (08) - HYDRAULICS

1

73160567

ROTOR DISTRIBUTOR

1шт.

2

70921565

SCREW

4шт.

3

70912441

LOCK WASHER

4шт.

4

70923717

HYD CONNECTOR

2шт.

5

70921205

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

70900942

COTTER PIN

1шт.

7

70658592

PIN,9.53mm OD x 149.35mm L

1шт.

8

70911115

WASHER

1шт.

9

70927672

HYD CONNECTOR

2шт.

10

75320161

FLEXIBLE HOSE

2шт.

11

73162825

PLATE

1шт.

12

70922457

HYD CONNECTOR

2шт.

13

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

73130105

HYDRAULIC VALVE

1шт.

15

70921409

HYD CONNECTOR

2шт.

16

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

75255794

HYDRAULIC HOSE

2шт.

18

70923905

ELBOW

4шт.

19

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

11701721

NUT,M10, Cl 10

2шт.

21

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

22

70630753

WASHER

2шт.

23

75255800

HYDRAULIC HOSE

2шт.

24

70929344

CLAMP

1шт.

25

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

1шт.

26

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.
