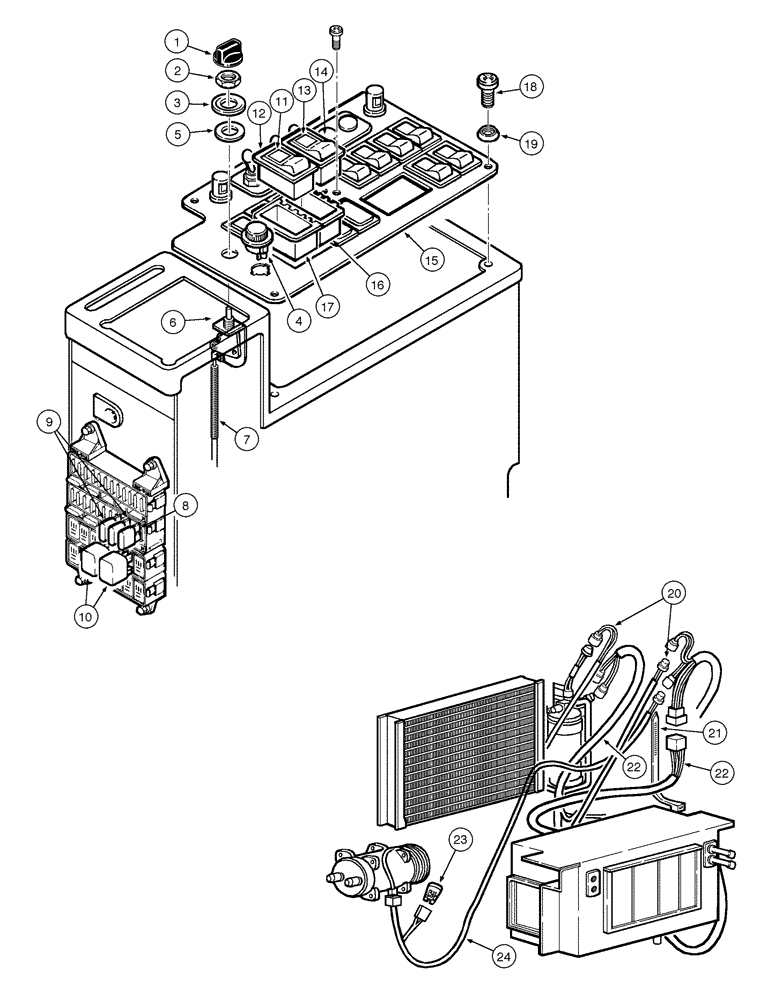

Запчасти Case 885 (04-54[01]) - AIR CONDITIONING SYSTEM (04) - ELECTRICAL SYSTEMS

1

1994720C1

KNOB

Control lever

1шт.

2

109311H

JAM NUT

1шт.

3

75321640

DECAL

Heater

1шт.

4

75289897

FAN SWITCH

1шт.

5

79005601

SHIM

1шт.

250742A1

ELECTRIC CABLE

Assy, Includes items 6, 7

1шт.

6

1954651C2

CONTROL

1шт.

7

250739A1

CABLE,510mm L

1шт.

8

9804895

FUSE,20A, Micro, Yellow

1шт.

9

9811773

FUSE,10A, Micro, Red

2шт.

10

75251103

RELAY

2шт.

75321122

SWITCH

Assy, Includes items 11, 12

1шт.

11

75321124

LENS,BLUE

1шт.

12

75251041

TOGGLE SWITCH

1шт.

75321686

SWITCH

Assy, Includes items 13, 14

1шт.

13

75321687

LENS,GREEN

1шт.

14

75251050

TOGGLE SWITCH

1шт.

15

87540678

PANEL

1шт.

For equipment with A/C

1шт.

15

87545948

PANEL

1шт.

For equipment with cab heater

1шт.

15

87545947

PANEL

1шт.

For equipment with open cab

1шт.

16

75251093

CONNECTING BLOCK

1шт.

17

85803983

CONTACT HOUSING

1шт.

18

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

19

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

4шт.

20

75322516

ELECTRIC CABLE

A/C pressure sensor

1шт.

21

75201642

CLAMP

3шт.

22

75322519

ELECTRIC CABLE

A/C pressure sensor

1шт.

23

75322270

ELEC CONNECTOR

1шт.

24

75322517

ELECTRIC CABLE

Air compressor

1шт.
