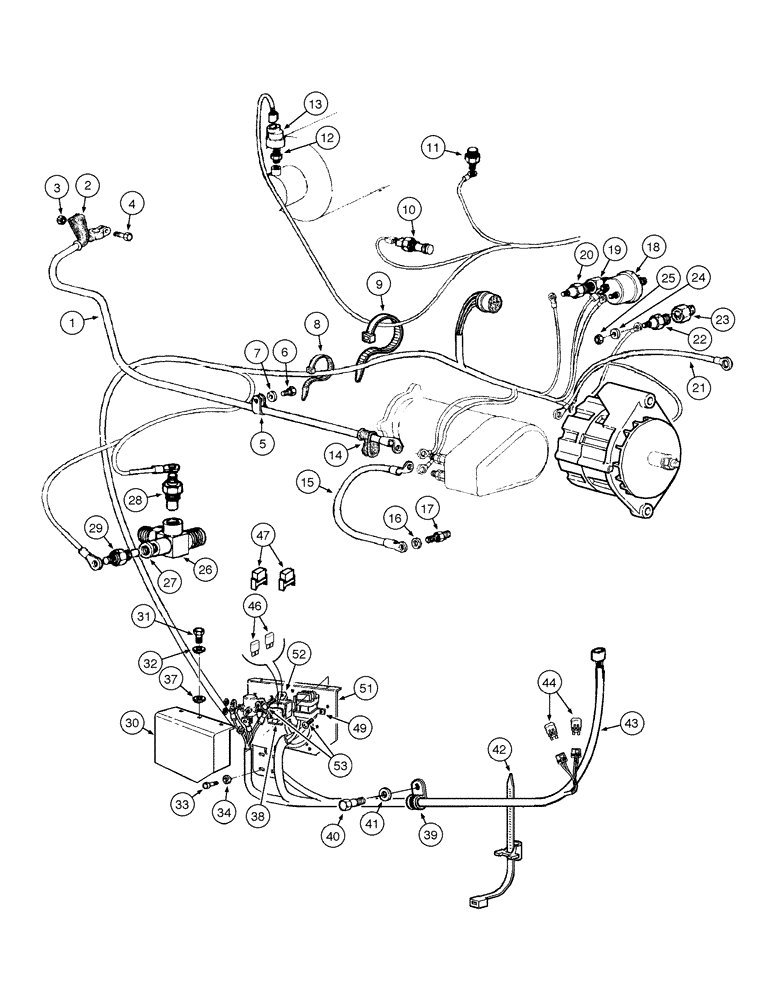

Запчасти Case 885 (04-24[01]) - ELECTRIC SYSTEM - ENGINE (04) - ELECTRICAL SYSTEMS

1

76022498

ELECTRIC CABLE

Includes items 2, 3, 4

1шт.

2

8321668

BOOT

1шт.

3

15896218

NUT,Hex, M6 x 1

1шт.

4

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

1шт.

5

549064

CLAMP

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

7

10516671

LOCK WASHER

1шт.

8

75201641

CLAMP

1шт.

9

75201642

CLAMP

10шт.

10

75322672

SENSOR

Restriction filter

1шт.

11

1983238C1

SENSOR,1/2" - 14

Oil

1шт.

12

70916634

HYD CONNECTOR

1шт.

13

79102142

INDICATOR

Filter

1шт.

14

4956122

PROTECTION CAP

1шт.

15

73152169

FLEXIBLE CONTROL

1шт.

16

14476531

WASHER

1шт.

17

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

18

84268384

SENSOR

Engine oil pressure

1шт.

19

75214505

HYD CONNECTOR

1шт.

20

75236111

TEMPERATURE SENDER,5/8" - 18

Water temperature

1шт.

21

73126797

ELECTRIC CABLE,228.6mm L

1шт.

22

1983238C1

SENSOR,1/2" - 14

Water

1шт.

23

70901828

BUSHING

1шт.

24

70904203

LOCK WASHER

1шт.

25

70910251

NUT

1шт.

26

75254122

HYD CONNECTOR

1шт.

27

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

28

75261702

SWITCH

Oil temperature

1шт.

29

75236111

TEMPERATURE SENDER,5/8" - 18

Oil temperature

1шт.

30

75322088

COVER

Bracket

1шт.

31

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

32

10516473

WASHER

Lock

5шт.

33

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

2шт.

34

10520121

WASHER

2шт.

35

120398A1

RELAY

2шт.

37

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

5шт.

38

5962562

COVER

1шт.

39

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

2шт.

40

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

41

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

42

75284071

CLAMP

1шт.

43

75326324

WIRE

1шт.

44

75283949

DIODE ELEMENT

2шт.

46

9811773

FUSE,10A, Micro, Red

2шт.

47

73402889

DOOR

2шт.

49

75326646

WIRE

1шт.

51

75326718

BOX

1шт.

52

50001484

BRACKET

1шт.

53

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

3шт.
