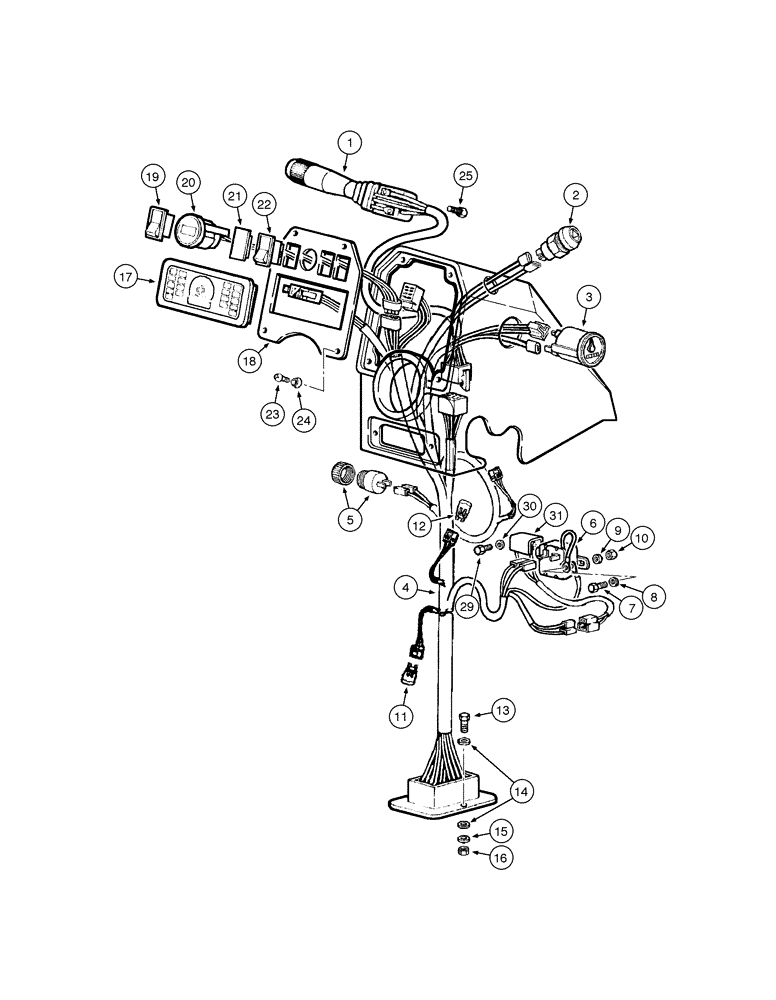

Запчасти Case 885 (04-14[01]) - ELECTRIC SYSTEM - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

73163234

SWITCH

1шт.

2

85803974

PUSH BUTTON

1шт.

3

75220416

HOURMETER

1шт.

4

75326328

ELECTRIC CABLE

1шт.

5

75241340

HORN

1шт.

6

70663928

FLASHER UNIT

1шт.

7

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

8

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

4шт.

9

70904203

LOCK WASHER

2шт.

10

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

11

75322270

ELEC CONNECTOR

1шт.

12

75283949

DIODE ELEMENT

1шт.

13

10372711

SCREW

3шт.

14

70917458

WASHER

6шт.

15

11195371

LOCK WASHER

3шт.

16

70917479

NUT

3шт.

17

87523133

DASHBOARD

Instruments

1шт.

17

84197204R

REMAN-ELECT MONITOR

885 MOTOR GRADER TIER 0 TIER 2 (BR) ASN N8AF05114 (1/08-), Reman for New PN 87523133

1шт.

17

84197204C

CORE-MONITOR

Return Number

1шт.

18

75251603

PLATE

1шт.

19

75251043

SWITCH

1шт.

20

73162493

INDICATOR

Speed/malfuction

1шт.

21

5151033

PLASTIC PLUG

1шт.

22

75251043

SWITCH

1шт.

23

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

24

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

4шт.

25

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

3шт.

29

10977531

BOLT,Hex, M5 x 10mm, Cl 10.9, Full Thd

1шт.

30

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

31

75252214

RESISTOR

1шт.
