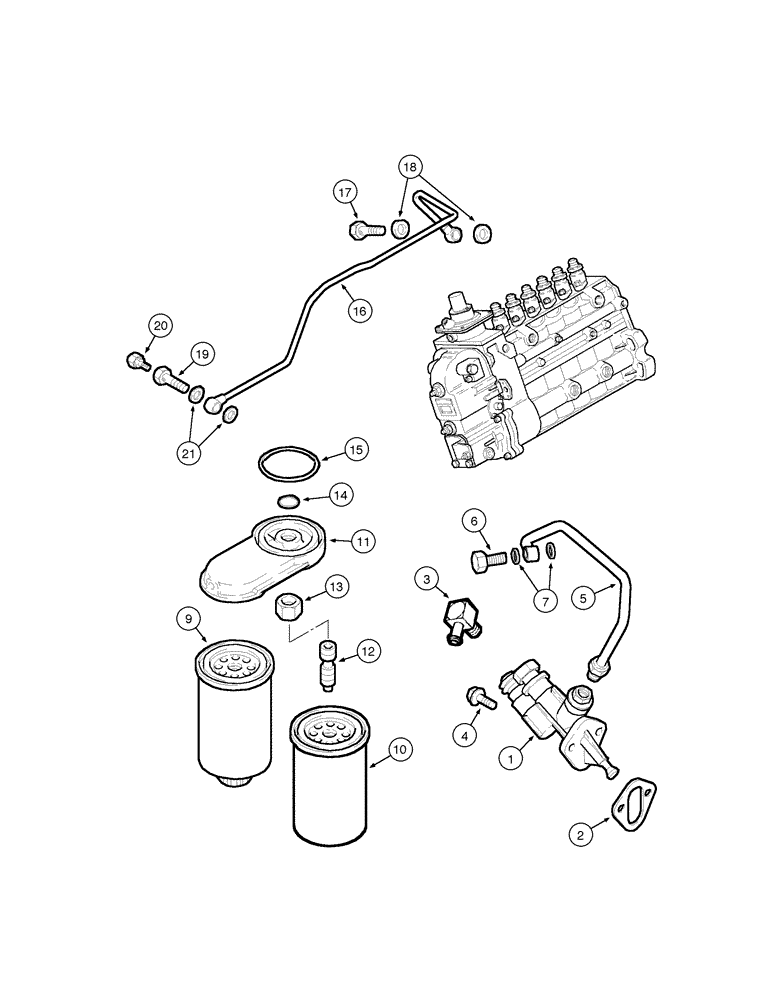

Запчасти Case 885 (03-14[01]) - TRANSFER PUMP AND FUEL FILTERS (03) - FUEL SYSTEM

1

J933252

FEED PUMP

Fuel Assy

1шт.

2

J931059

GASKET

1шт.

3

71100799

FITTING

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

6

J916361

BANJO BOLT

1шт.

7

J935171

SEALING WASHER

2шт.

8

149883A1

ELBOW

1шт.

Not shown

1шт.

9

J930942

SEPARATOR

Primary

1шт.

10

J931063

FUEL FILTER

Secondary

1шт.

11

NLS

NO LONGER SERVICED

1шт.

12

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

13

J903293

JAM NUT

1шт.

14

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING

1шт.

15

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING

1шт.

16

J936709

TUBE

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

4шт.

J905860

BANJO BOLT

Includes item 19, 20

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

21

J935171

SEALING WASHER

2шт.
