1
149905A1
KIT
Gaskets Cylinder Head Assy, Includes items 2 - 20
1шт.
2
J913025
GASKET
Thermostat
1шт.
3
J913032
GASKET
Outlet connector
1шт.
4
J927642
SEAL
Retainer valve
12шт.
If used
1шт.
5
J911941
GASKET
Turbo
1шт.
6
J929012
GASKET,0.5mm Thk
Exhasut manifold
1шт.
7
J914311
MANIFOLD GASKET
Intake cover
1шт.
8
J931350
GASKET
1шт.
If used
1шт.
9
J937706
GASKET,0.79mm Thk
Drain turbo
1шт.
10
J905449
SEAL,7.179mm W x 2090mm L
Gasket valves cover
1шт.
11
J910824
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
Valves cover
6шт.
12
J909886
SEAL,16.9mm ID x 22mm OD x 38mm L
Injection
6шт.
13
J903380
SEAL
High pressure
7шт.
14
238-5115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
1шт.
15
J906659
SEAL
Injector
6шт.
16
J818885
SEALING RING COLLAR
Thermostat
1шт.
17
J930827
HOSE,51.00 mm
Ventilation
1шт.
18
J919677
TUBE
1шт.
19
J914708
LOCKING PLATE
12шт.
20
J823921
GAUGE
1шт.
21
149906A1
KIT
Gaskets Block Assy, Includes items 22 - 37
1шт.
22
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
Oil inlet
1шт.
23
J926757
GASKET
Flywhell housing
1шт.
24
J915772
SEAL,Square, 1.68mm Thk x 29.87mm ID, -25
SEALRING Injection pump
1шт.
25
A77441
GASKET
Take-off
1шт.
26
J902089
SEAL,0.139" Thk x 3.859" ID, -241
Water pump
1шт.
27
J914301
GASKET
Flywhell housing
1шт.
28
J918174
GASKET,0.71mm Thk
Oil cooler
1шт.
29
J929011
GASKET,1.19mm Thk
Cooler cover
1шт.
30
J901798
SEALING WASHER
1шт.
If used
1шт.
31
J931059
GASKET
Pump feeding
1шт.
32
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING Flywhell housing
1шт.
33
J910260
O-RING
Plug
1шт.
34
J907177
SEAL,118mm ID x 122.32mm OD x 4mm Thk
Liner
6шт.
35
J913994
O-RING
Gear injection pump
1шт.
36
J916284
O-RING
Injection pump
1шт.
37
J926722
SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108
1шт.
If used
1шт.

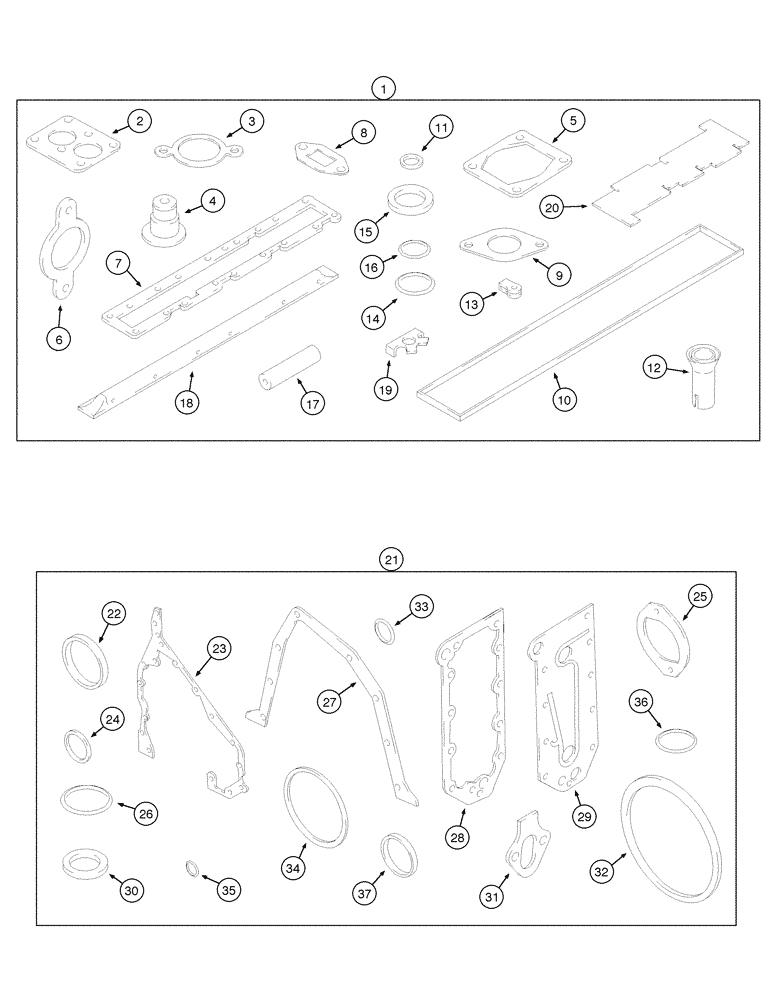

![Схема запчастей Case 885 - (02-50[01]) - GASKET SETS - CYLINDER HEAD AND BLOCK (02) - ENGINE](https://partsell.ru/storage/images/casece/896810.png)
