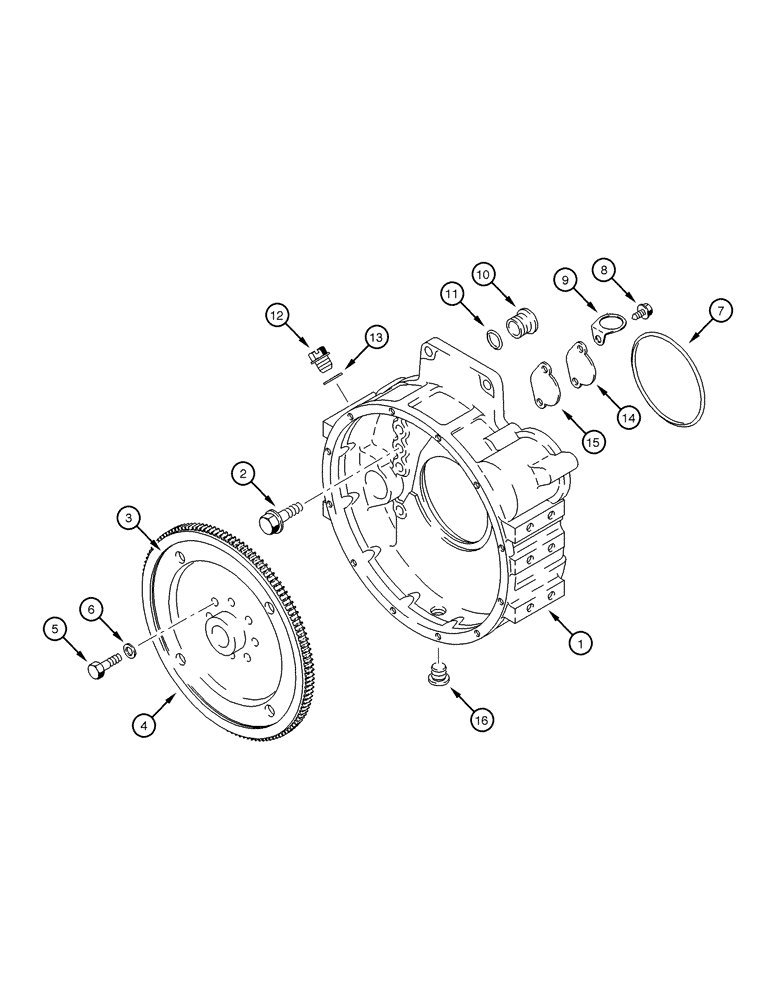

Запчасти Case 885 (02-46[01]) - FLYWHEEL HOUSING (02) - ENGINE

1

149880A1

HOUSING

1шт.

2

J920447

FLANGE BOLT,M12 x 40mm, Cl 10.9

Flange

12шт.

3

J936821

FLYWHEEL WITH GEAR

Assy, Includes item 4

1шт.

4

J901774

GEAR,Flywheel

1шт.

5

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

6

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

8

J900225

COVER PLATE

2шт.

9

J928989

CLIP

Fixing

1шт.

10

J910248

PLUG

Includes item 11

1шт.

11

J910260

O-RING

1шт.

12

149881A1

PLUG

Includes item 13

1шт.

13

149882A1

O-RING

1шт.

14

J908095

PLATE

1шт.

15

J936027

GASKET,0.86mm Thk

1шт.

16

A77505

PLUG

1шт.
